Form cutters

back to list

  • CH-50052150 - Form cutters

    • Body form: form defined by a DXF file.
    • Face form: flat.

  • CH-50052450 - Extension for clamping system transformation

    • A transformation is useful when the center of the tool is not in the same plane as the tool axis. So, an insert can be clamped with a vice differing to the tool axis (headstock).
    • Feasibility limited depending on machine layout and clamping system.
    • Probing of tool location is not possible.
    • This option demands item no. CH-50052150 (Form cutters).

  • CH-50052680 - Extension for forming taps

    • Modulation of diameter according to NUMROTO calculations (customer specific adaptation possible).
    • This option demands item no. CH-50052150 (Form cutters).


  • CH-50052760 - 3-axis oscillation for form relief grinding with Axium-CNC

    • Allows multi-axis oscillation in the direction of the relief angle.
    • This option demands item no. CH-50052150 (Form cutters).
    • For this option a special program with dynamic operators in C has to be created once.
    • Also the CNC has to be capable of running programs with dynamic operators in C. It might be that the CNC option for dynamic operators in C has to be purchased.

  • CH-50052780 - 3-axis oscillation for form relief grinding with Flexium/Flexium+ CNC

    • Allows multi-axis oscillation in the direction of the relief angle.
    • This option demands item no. CH-50052150 (Form cutters).
    • For this option a special program with dynamic operators in C has to be created once. On the Flexium CNC no additional CNC option is needed (compared to the Axium CNC).



  • CH-50052071 - Extension for indexable inserts

    • Additional module for form cutters for simplified programming of indexable inserts. The following operations can be ground:
      - Form relief 1 and 2
      - Chip groove
    • The following clamping orientations are supported:
      - In longitudinal direction
      - In the front plane
      - Vertical to the front plane
    • This option demands items no. CH-50052150 (Form cutters), CH-50052450 (Clamping system transformation) and CH-50052670 (3D tool simulation).

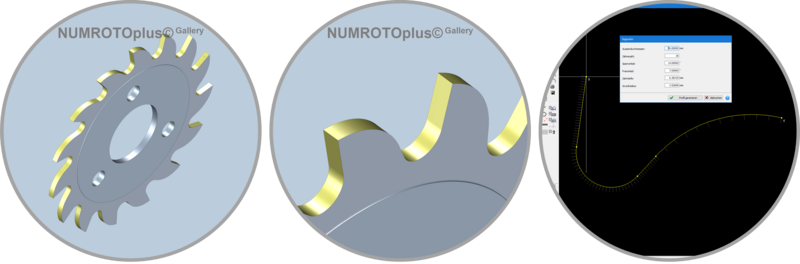

  • CH-50054700 - Extension for saw tooth profile

    • This option allows a quick generation of a saw tooth shape, as an alternative to the design in the profile editor.
    • Everything else must be done as usual as a form cutter together with the clamping system transformation.
    • Tooth shapes are supported, which consist of a straight rake face, a base radius and a back radius. All other shapes must be designed in the profile editor or an external CAD system.
    • Training by NUMROTO application engineers is recommended.
    • This option demands items no. CH-50052150 (Form cutters) and CH-50052450 (Clamping system transformation).
