Turning tools
-

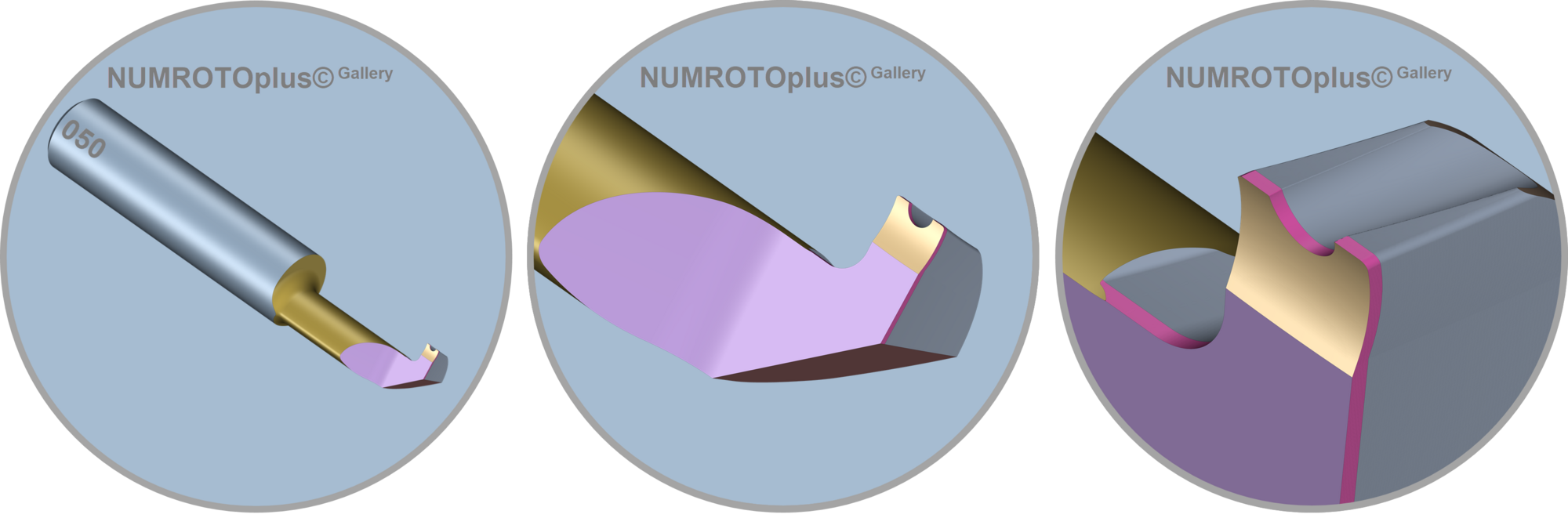

- Inside undercut turning tool machined in one set-up.
- This tool has been partly programmed with the component 'manual grinding path'.
- The round chip groove is run off as a form relief. The profile flanks follow the chip groove without distortion.
- Chip face and form reliefs follow the 'shear angle' helix type.
- The cam-shaped outer form is ground as a form relief with the support of the clamping system transformation.
- This option demands item no. CH-50052150 (Form cutters) and CH-50052450 (Clamping system transformation).
-

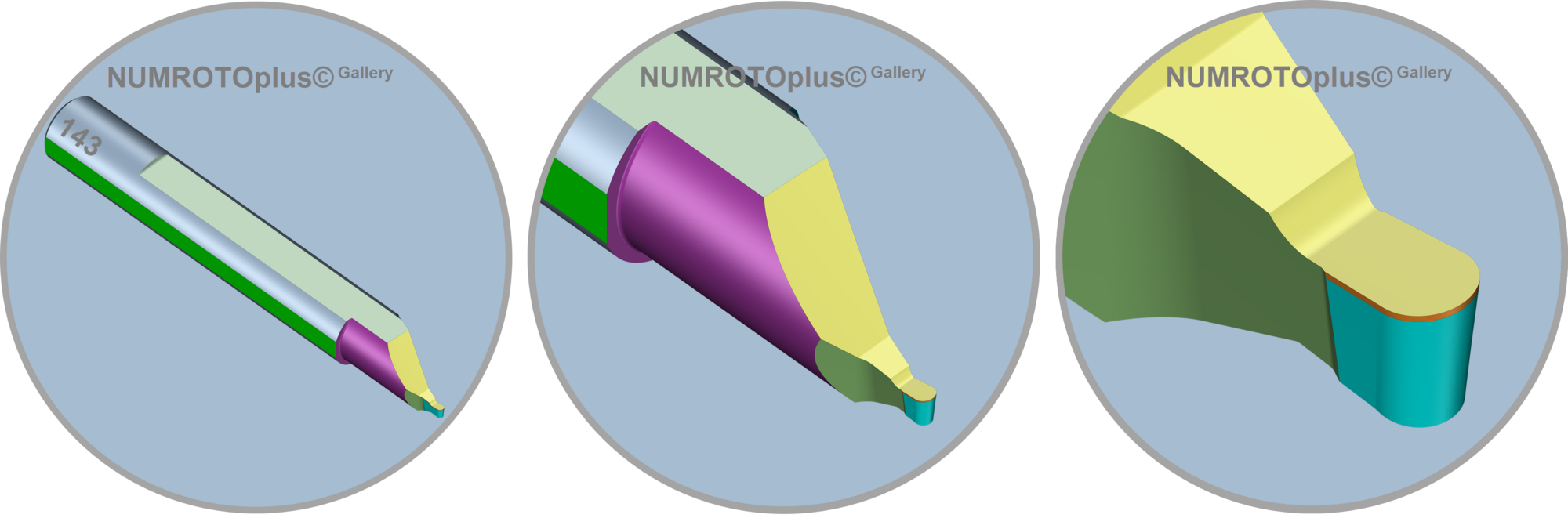

- Inside form grooving tool machined in one set-up.
- This tool has been partly programmed with the component 'manual grinding path'.
- Chip face and form reliefs follow the 'shear angle' helix type.
- The cam-shaped outer form is ground as a form relief with the support of the clamping system transformation.
- This option demands item no. CH-50052150 (Form cutters) and CH-50052450 (Clamping system transformation).
-

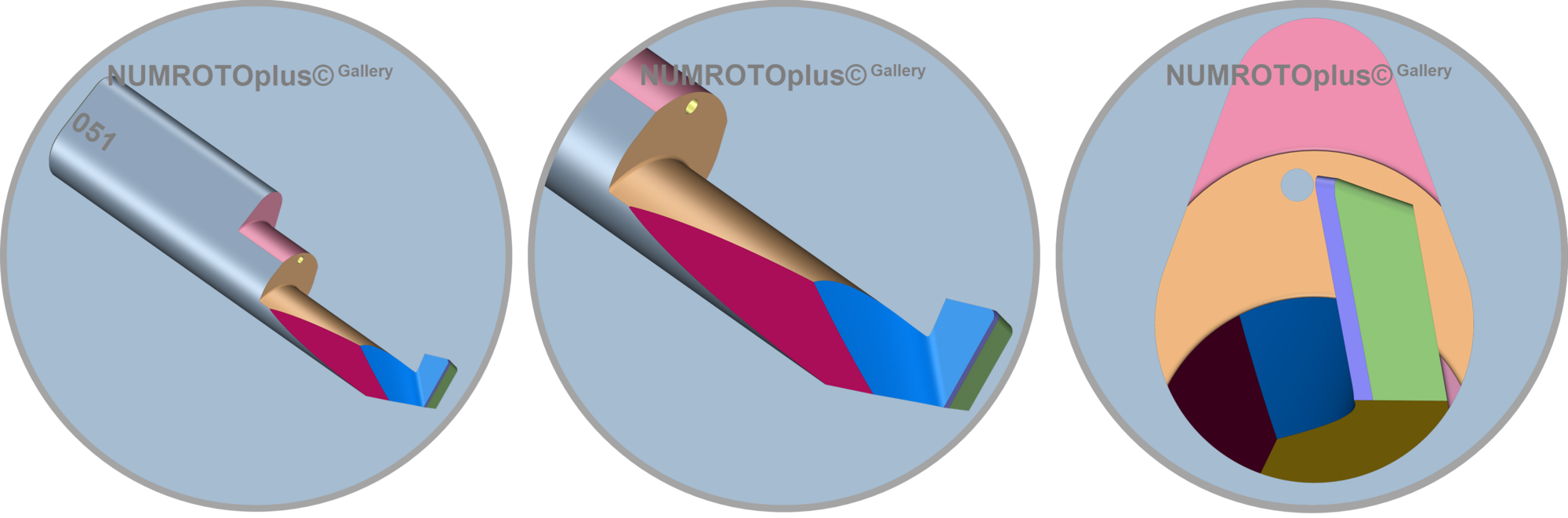

- Face grooving tool machined in one set-up.
- This tool has been partly programmed with the component 'manual grinding path'.
- This option demands item no. CH-50052150 (Form cutters) and CH-50052450 (Clamping system transformation).
-

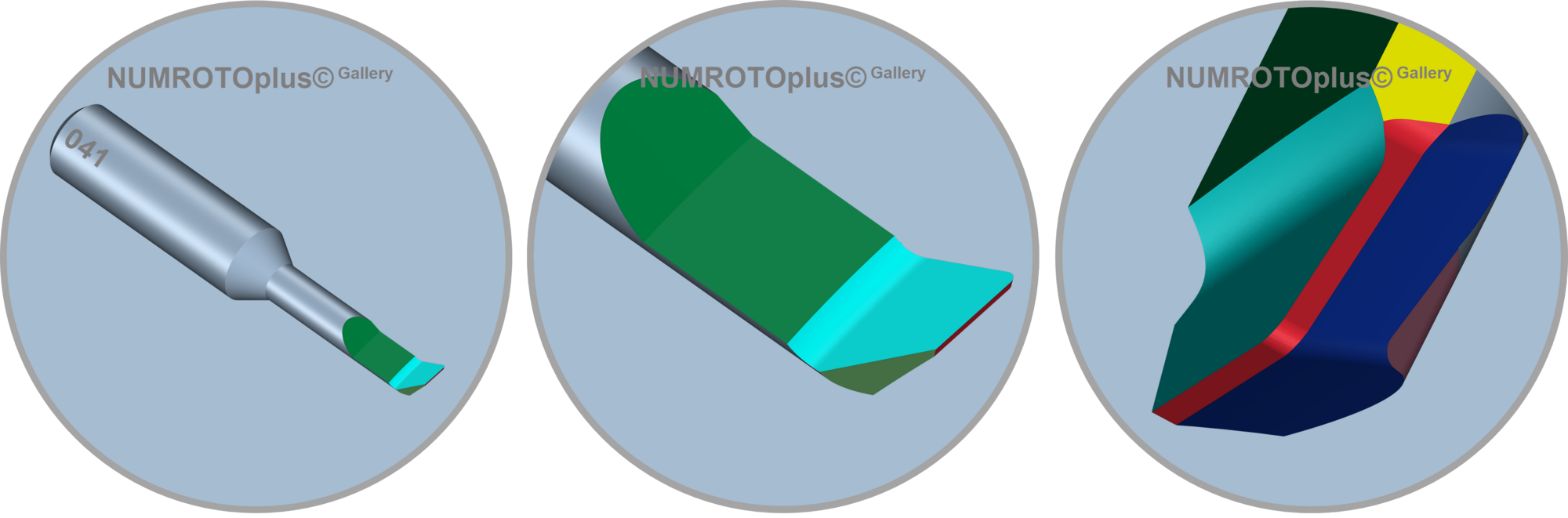

- Face and side grooving tool machined in one set-up.
- This tool has been partly programmed with the component 'manual grinding path'.
- This option demands item no. CH-50052150 (Form cutters) and CH-50052450 (Clamping system transformation).
