Drill points

back to list

  • Spiral point drill point

    • The spiral point drill tip consists of a simple spiral point machining and a gash which is freely defined.
    • The form of the gashes are already optimised.
    • This option demands item no. CH-50052370 (Simple drills / step drills).

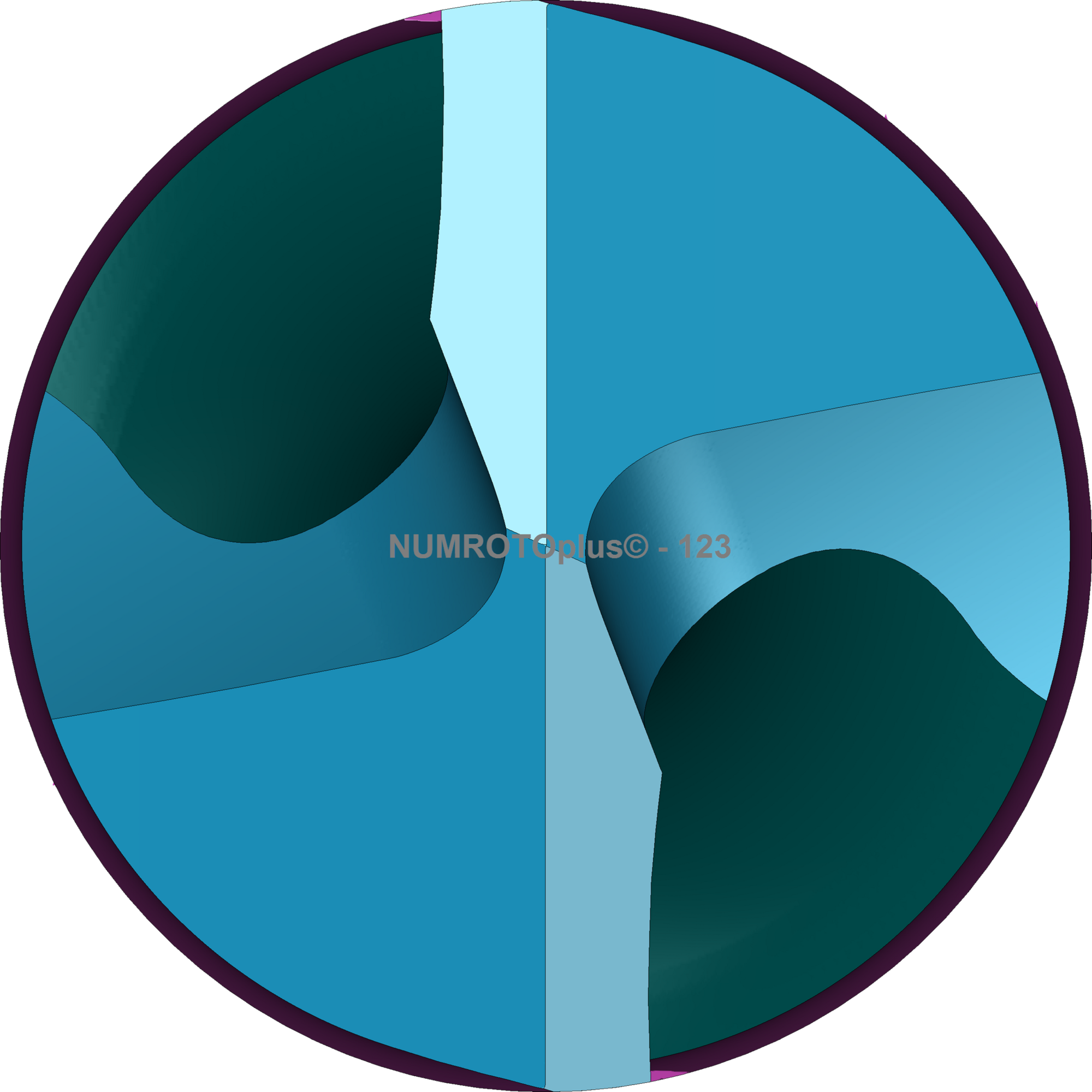

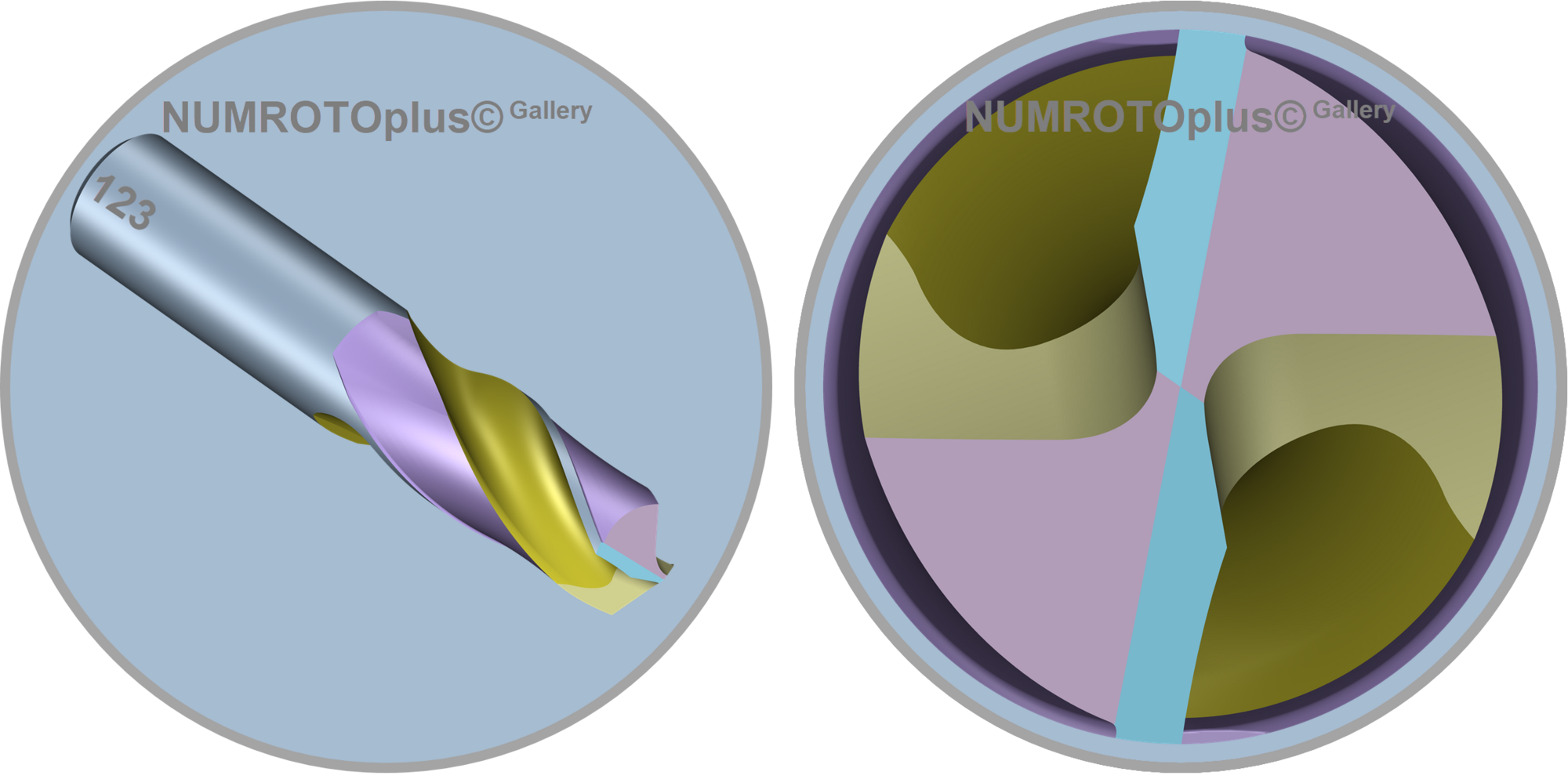

  • 4-face drill point

    • The reliefs on the tip are generally made with a cup wheel.
    • The form of the gashes are already optimised. There are differences between A, B, C and U forms.
    • This option demands item no. CH-50052370 (Simple drills / step drills).

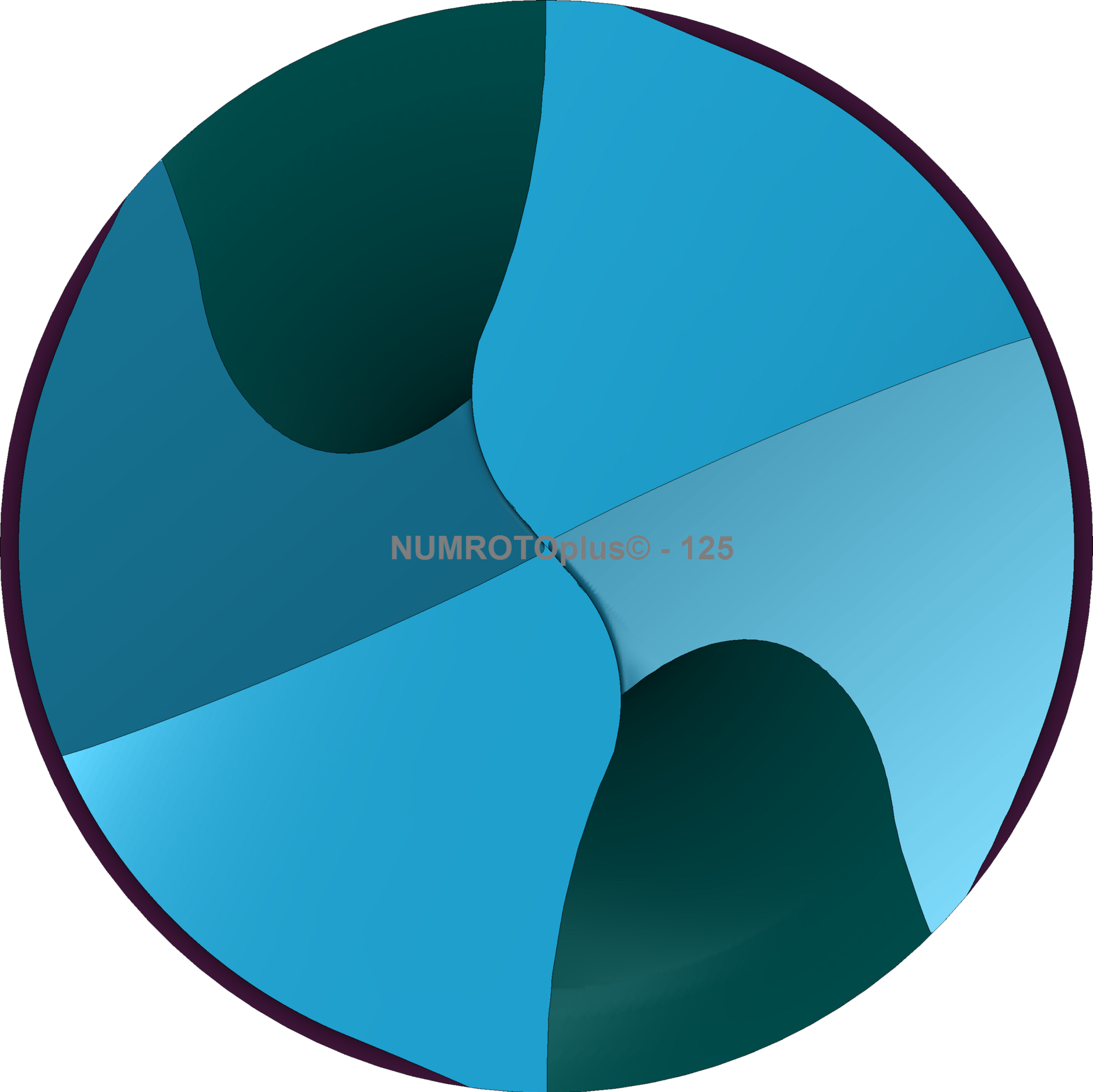

  • S4 drill point

    • The S4 drill tip consists of three different machining procedures.
    • The gash is ground with a peripheral wheel, and the radius on the cross wheel can be freely defined.
    • This option demands item no. CH-50052370 (Simple drills / step drills).

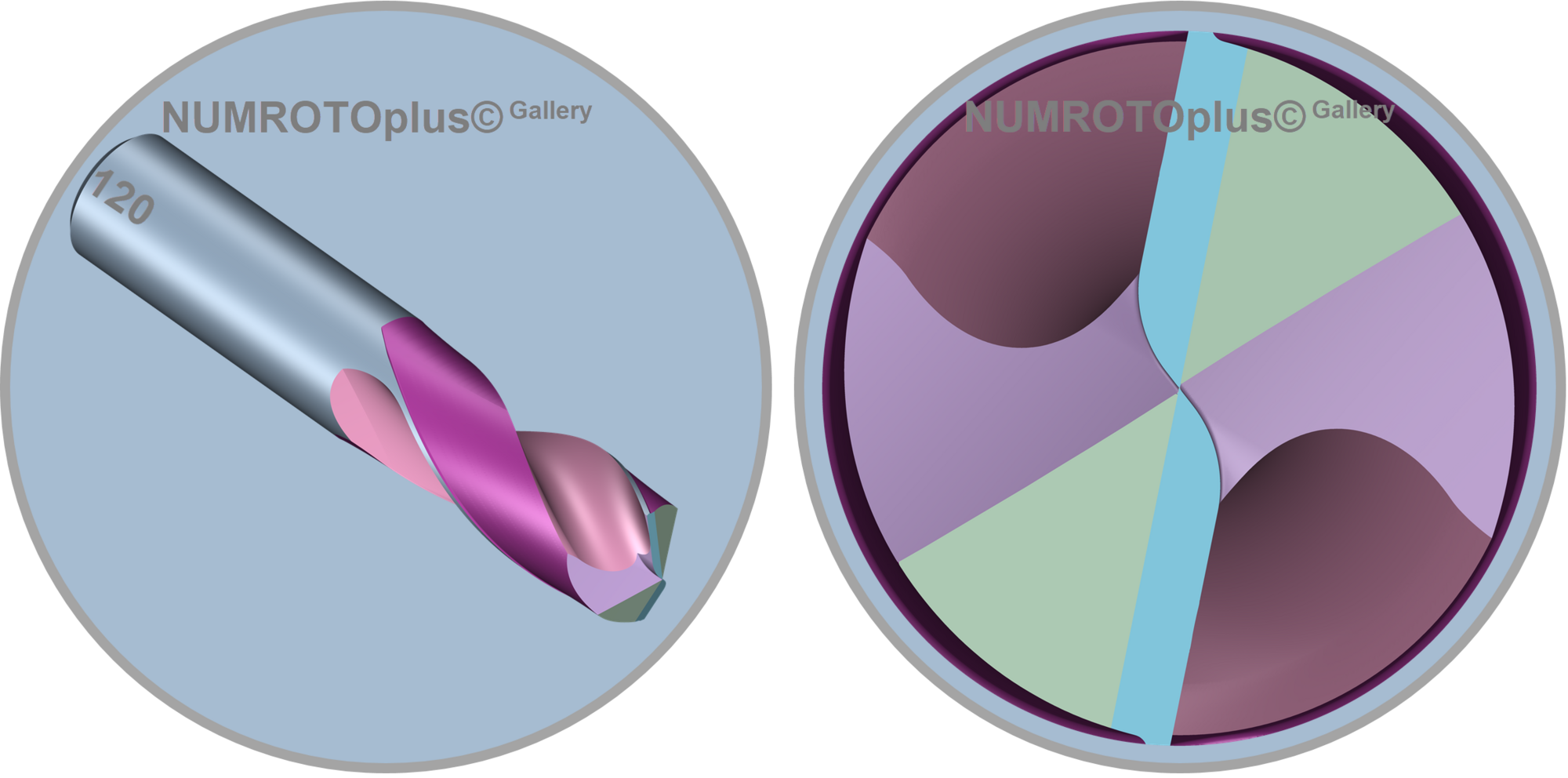

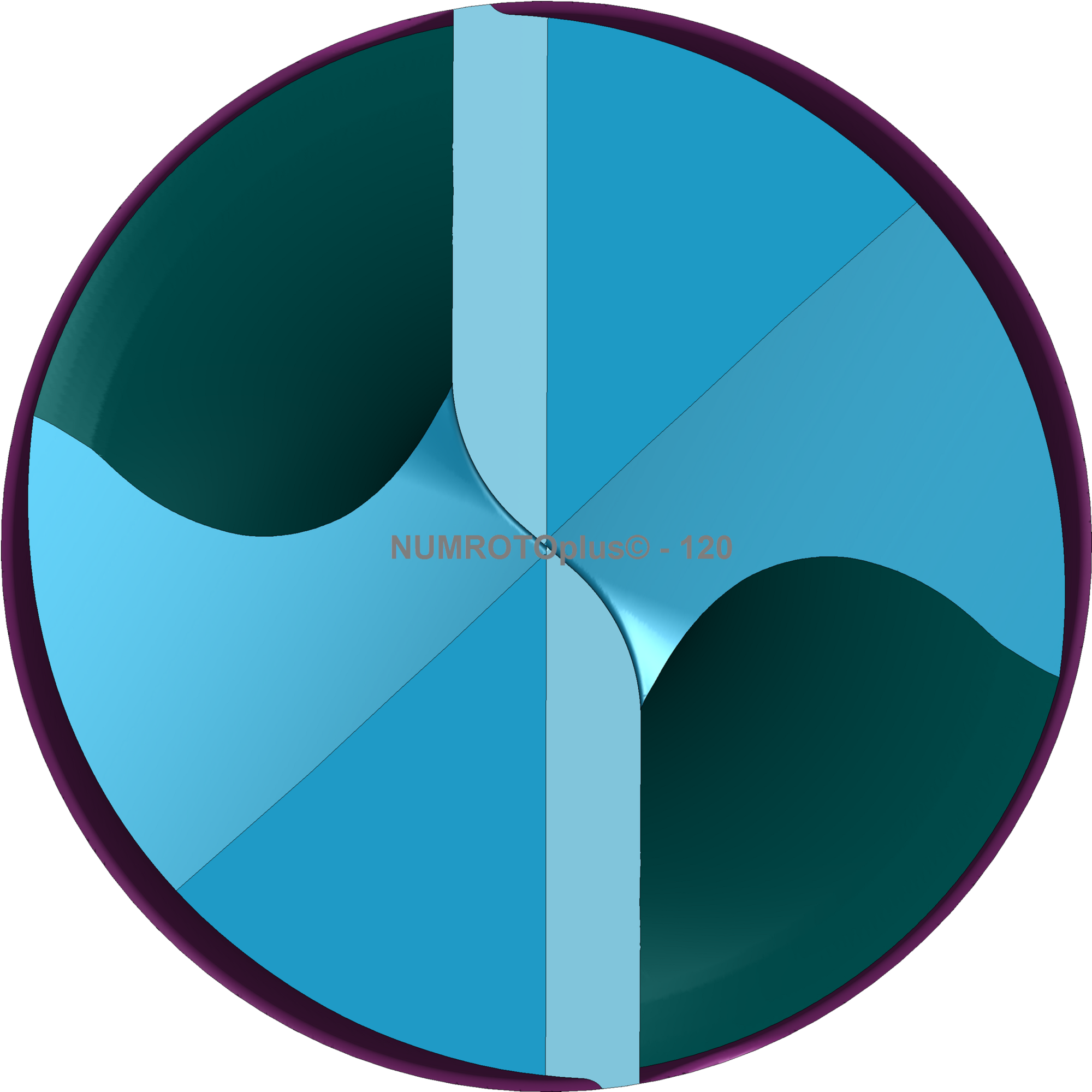

  • S6 drill point

    • The S6 drill tip consists of three different machining procedures.
    • The gash is ground with a peripheral wheel and the radius on the cross wheel can be freely defined. The machining for the tip is different from the S4 drill tip as the tip has reliefs and not a spiral point.
    • This option demands item no. CH-50052370 (Simple drills / step drills).

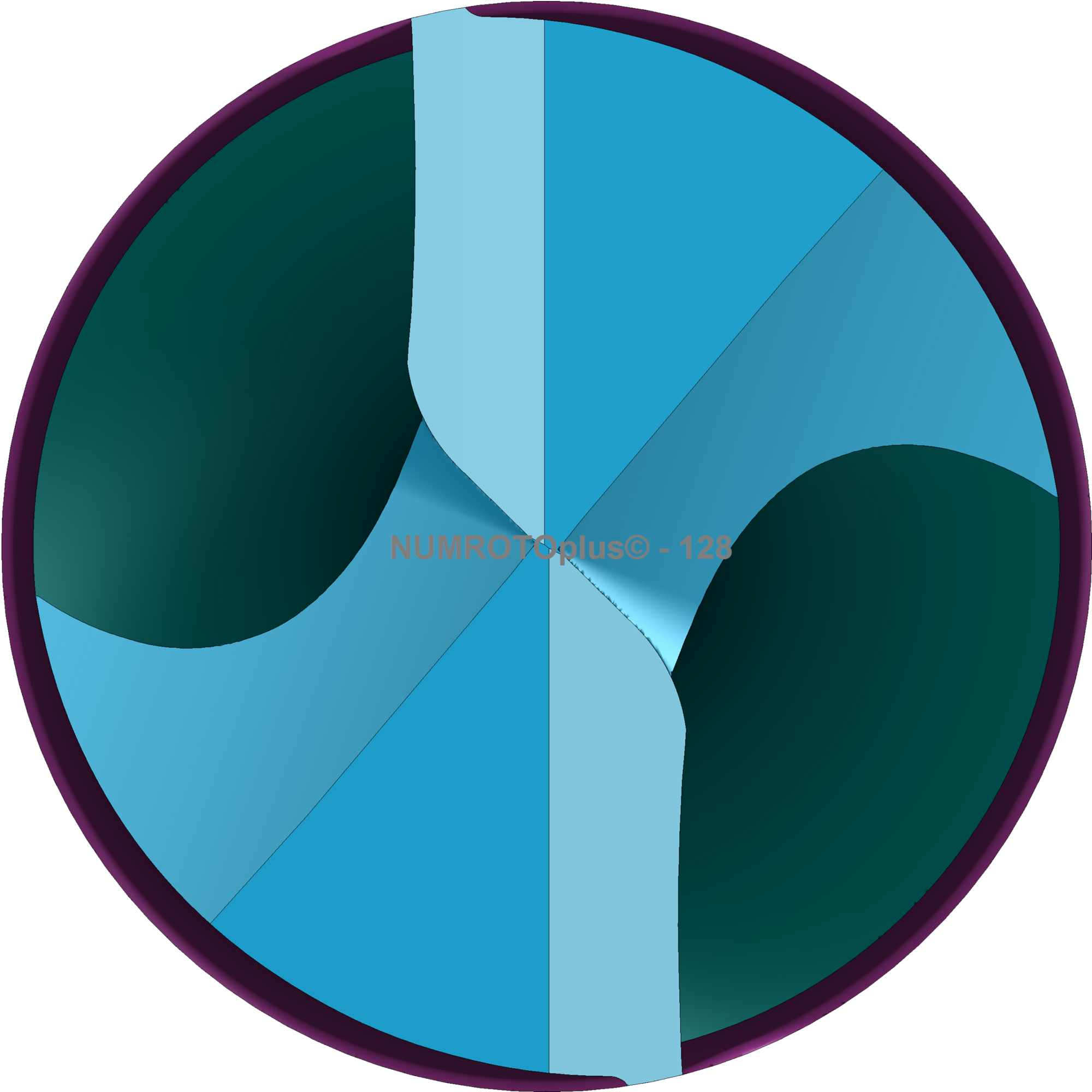

  • M6 drill point

    • The drill point M6 actually complies to the drill point S6, but with different default values.
    • This option demands item no. CH-50052370 (Simple drills / step drills).

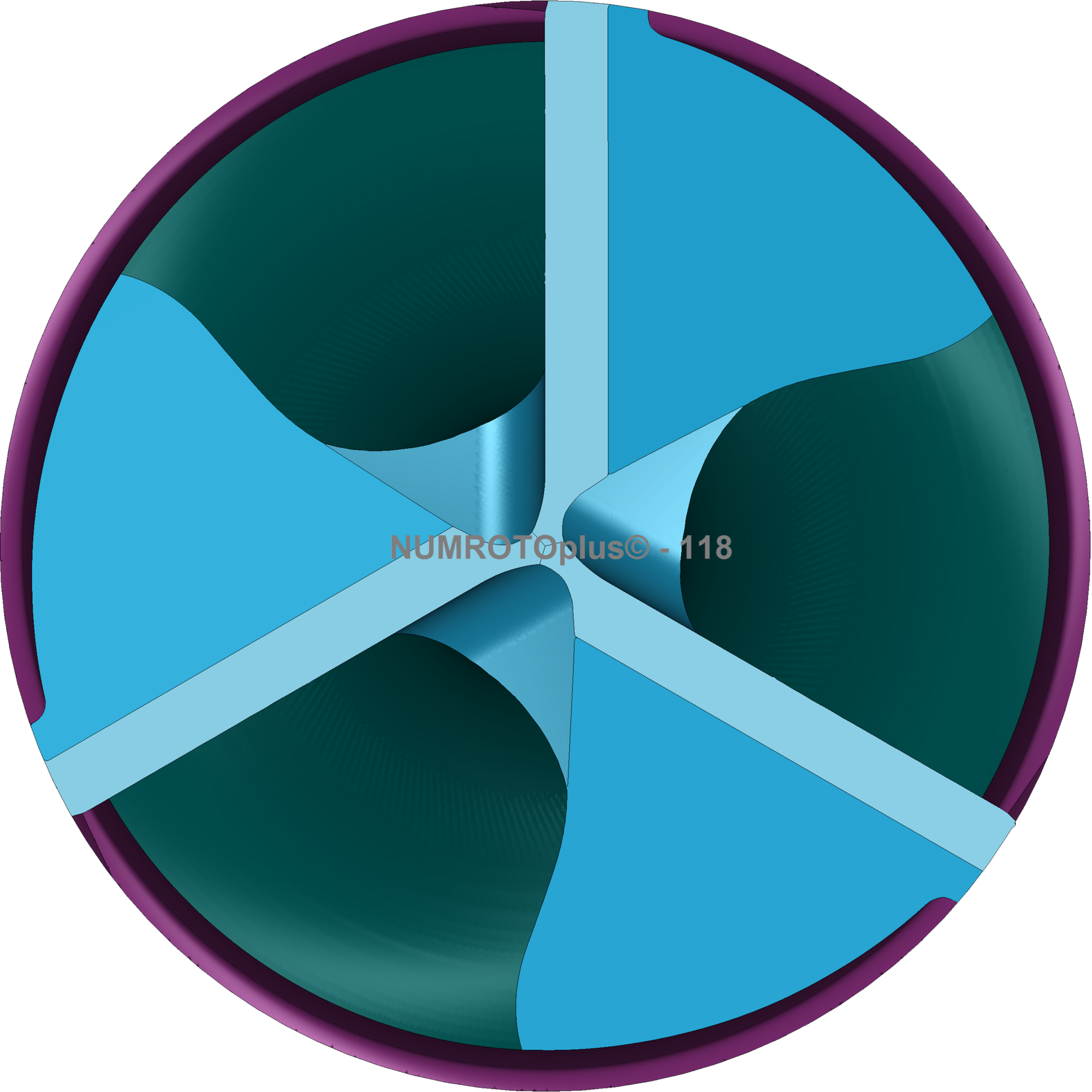

  • T3 drill point

    • The T3 drill tip has 3 cutting edges.
    • The tip is ground with 2 reliefs.
    • This option demands item no. CH-50052370 (Simple drills / step drills)

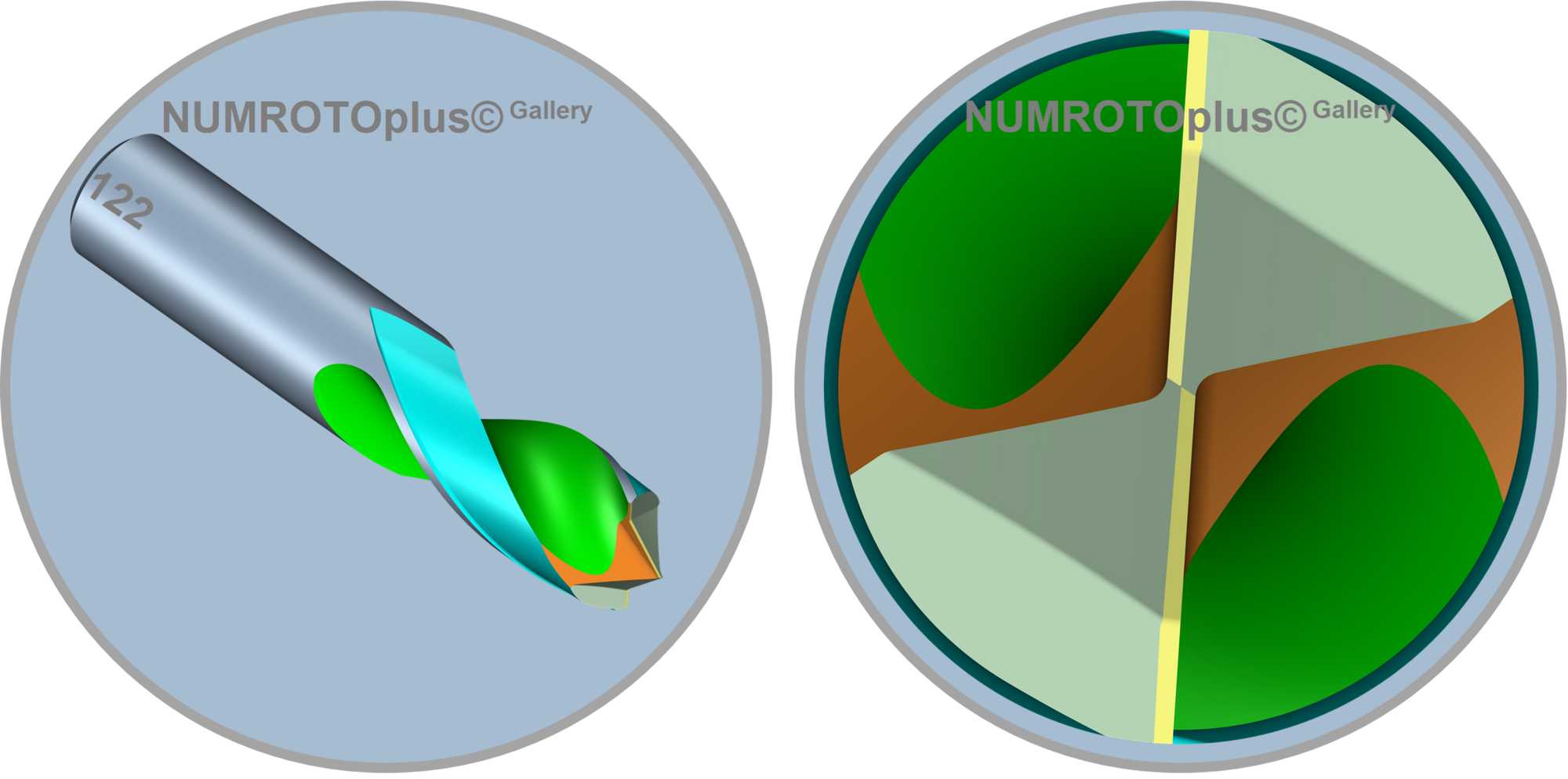

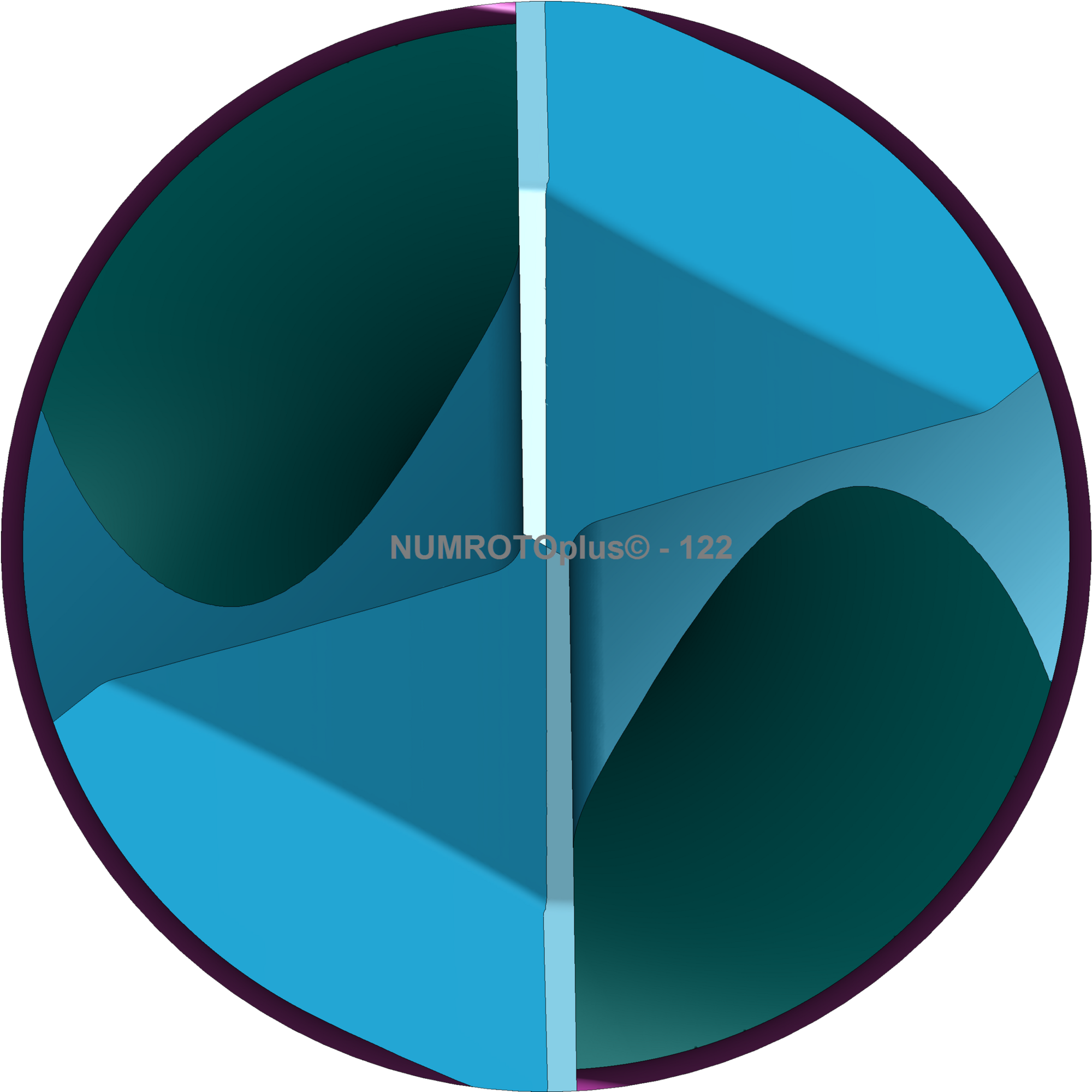

  • Break drill point

    • This option demands item no. CH-50052380 (Complex drills / step drills).

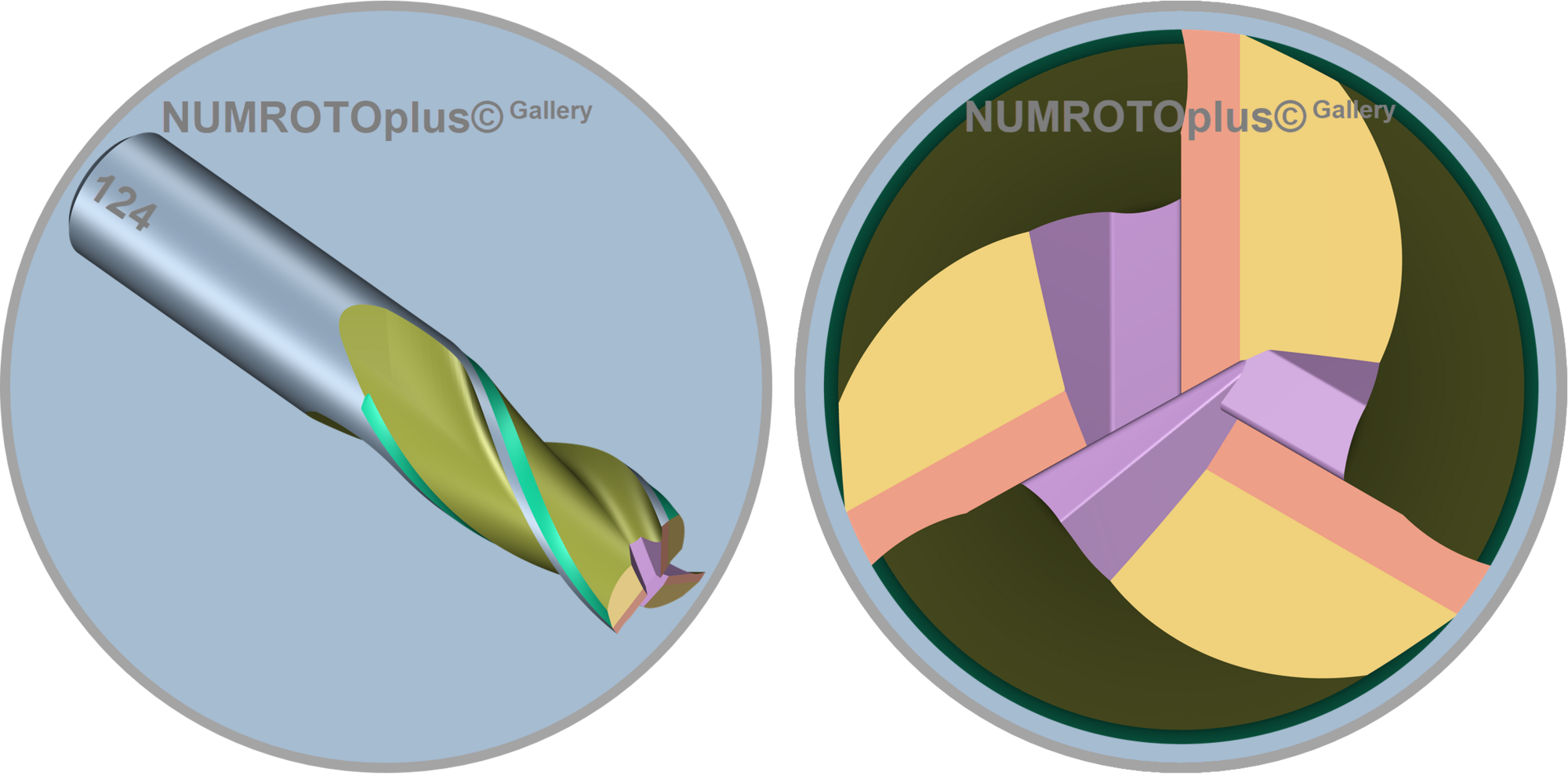

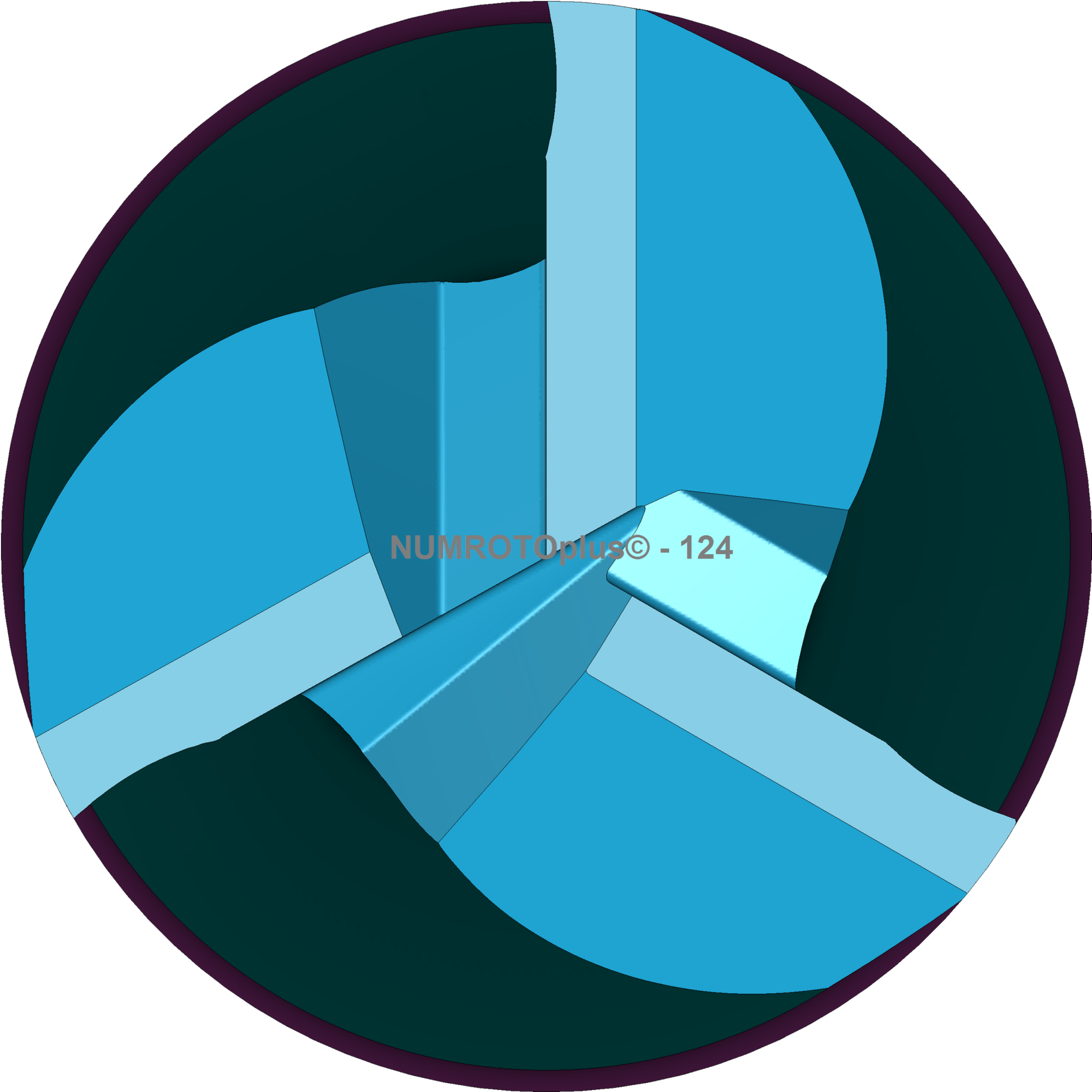

  • End mill drill point

    • The end mill drill point is used, if a drill or stepdrill has to cut on the tip like an end mill.
    • The number of teeth is freely selectable.
    • This option demands item no. CH-50052380 (Complex drills / step drills).

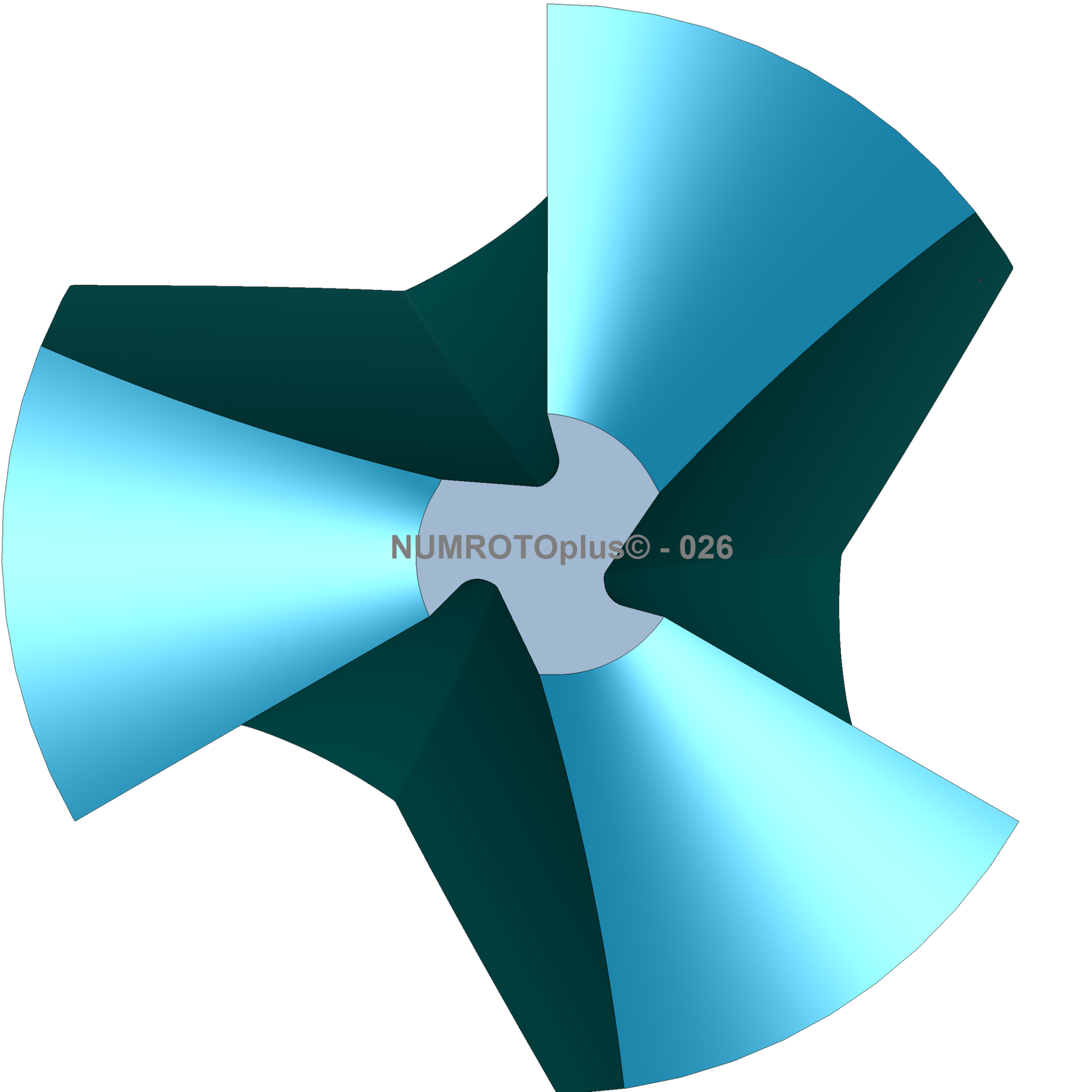

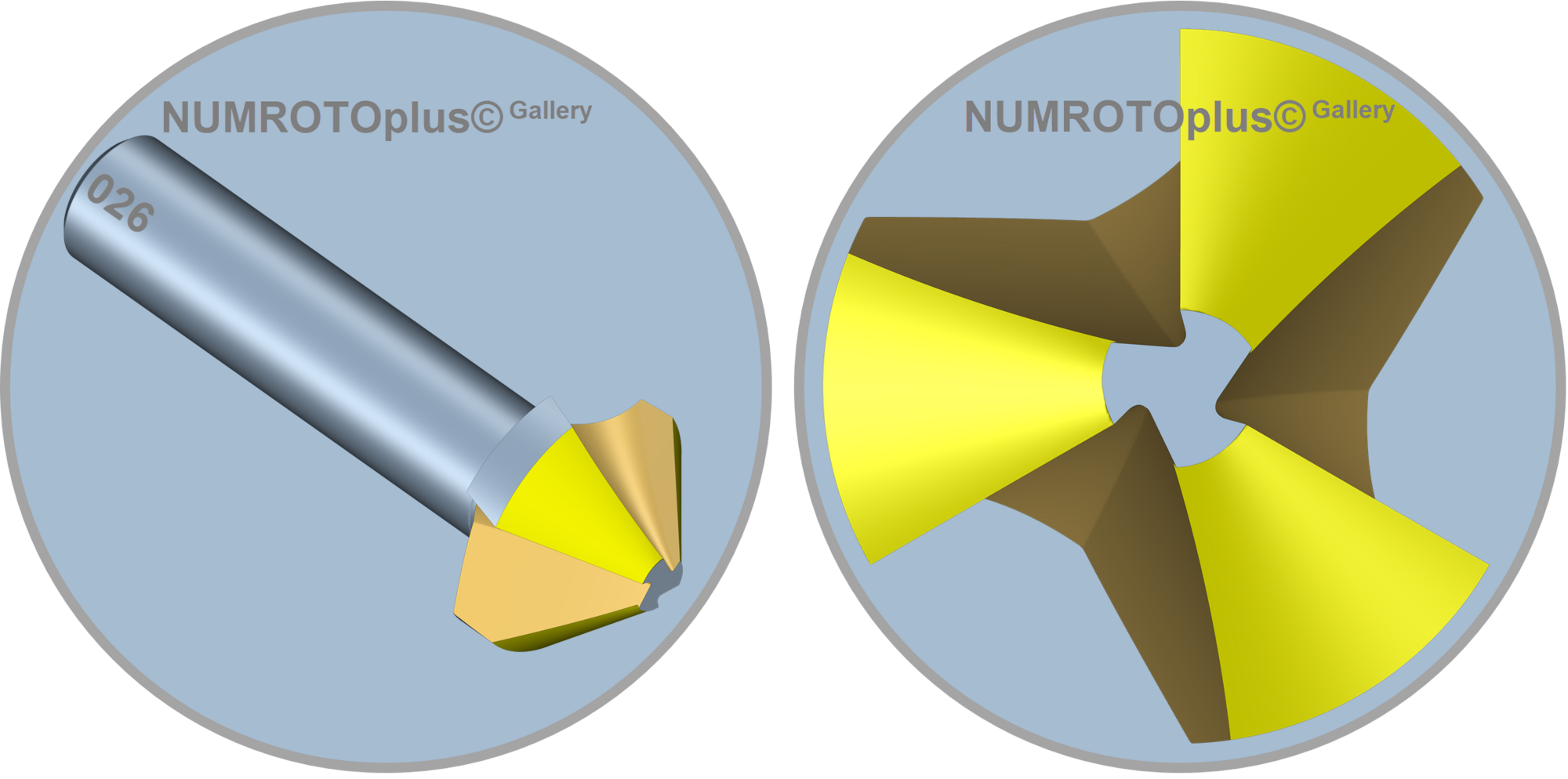

  • Countersink drill point

    • This option demands item no. CH-50052380 (Complex drills / step drills).

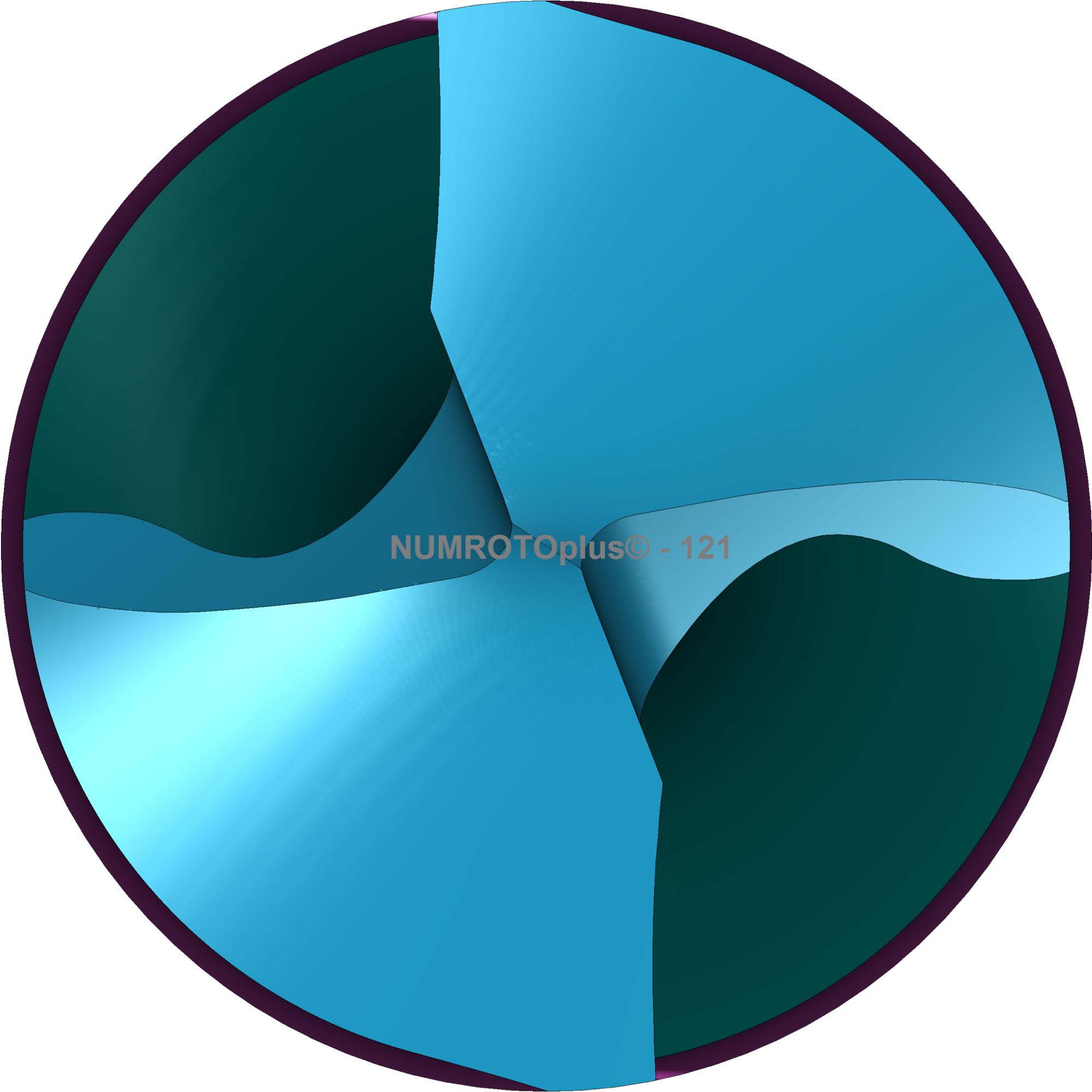

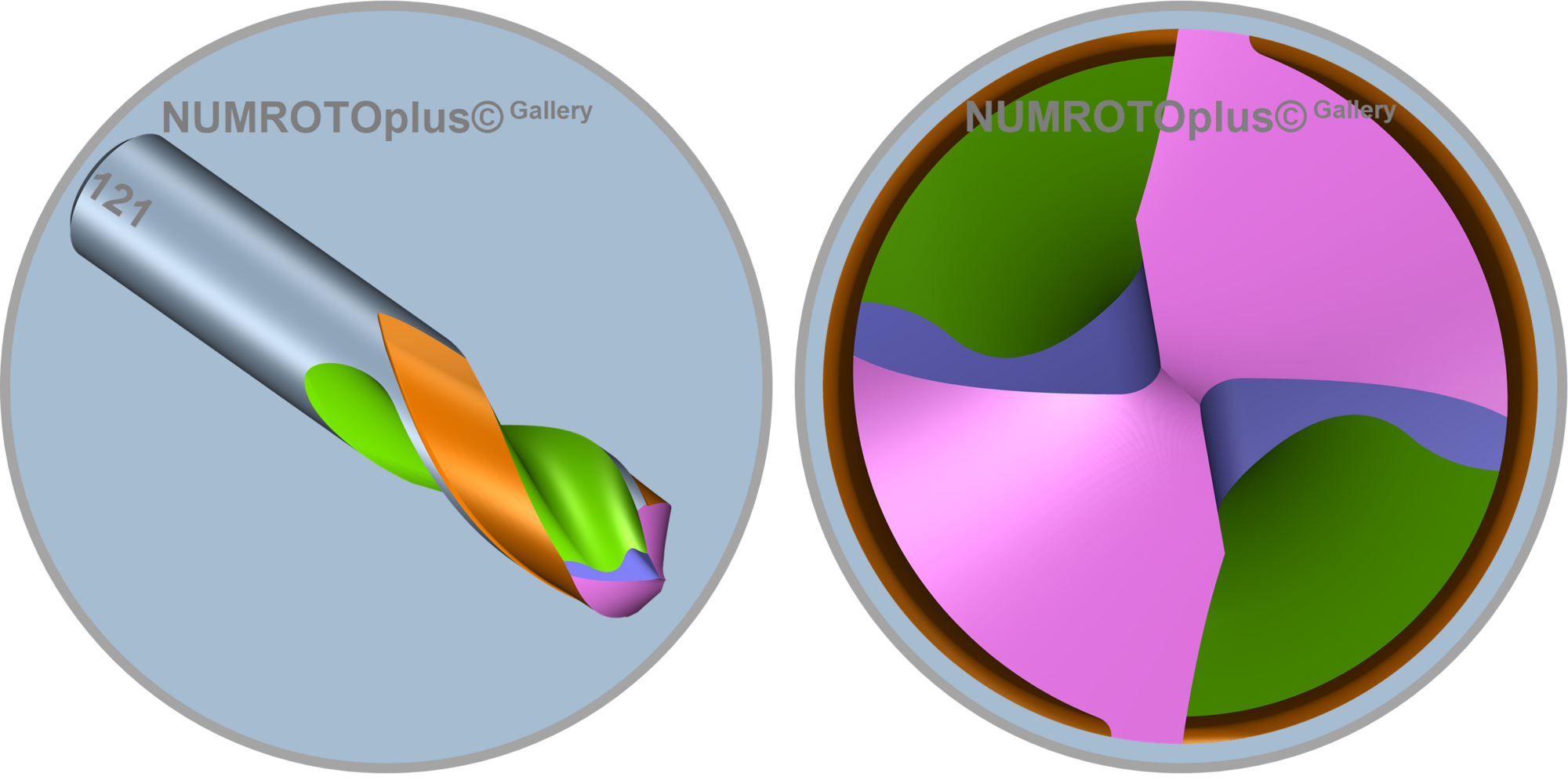

  • SP-V drill point

    • The cross wheel of the KM-V drill tip does not run in a line but is slightly bent by the immersion factor.
    • This option demands item no. CH-50052380 (Complex drills / step drills).

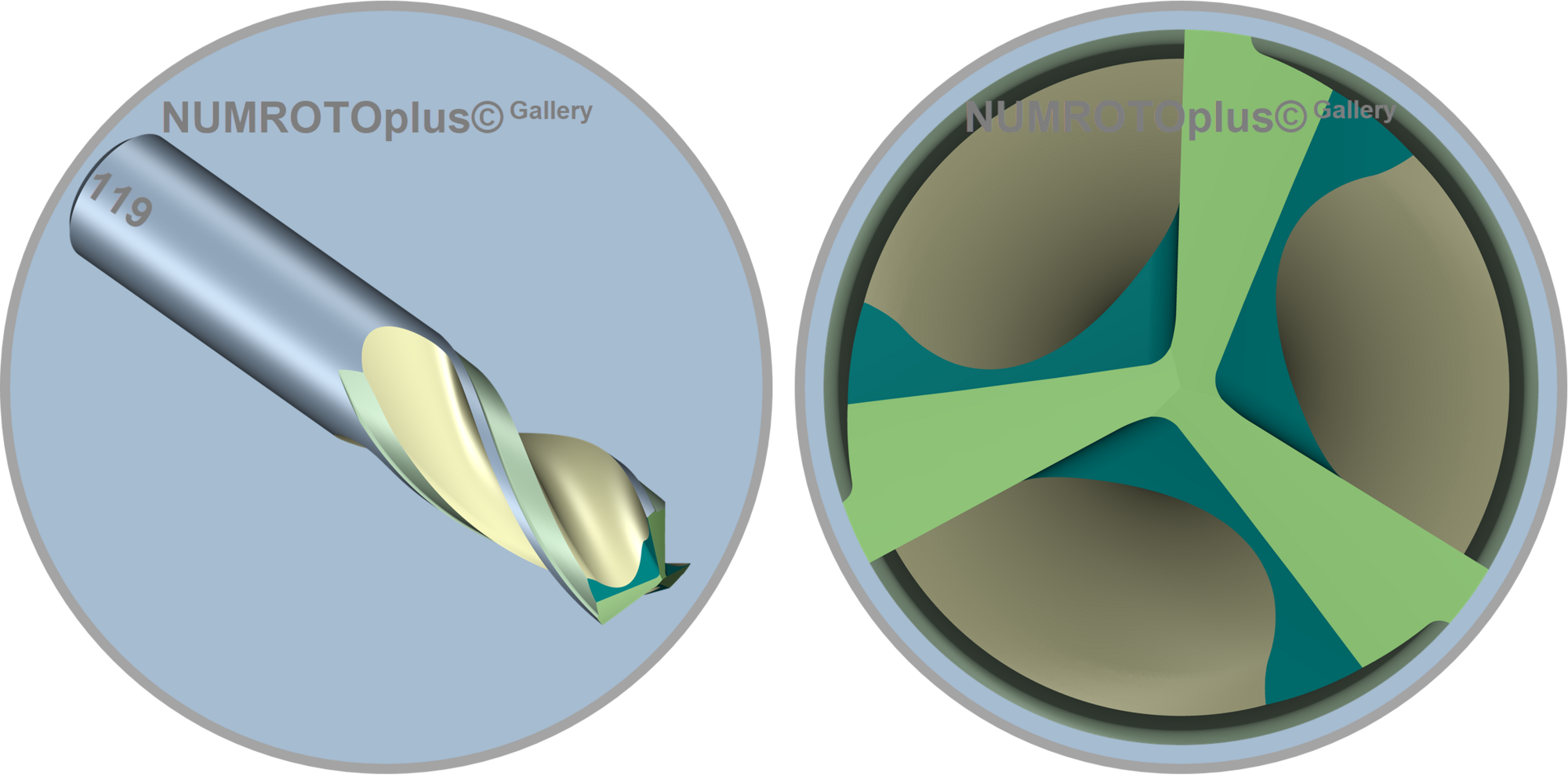

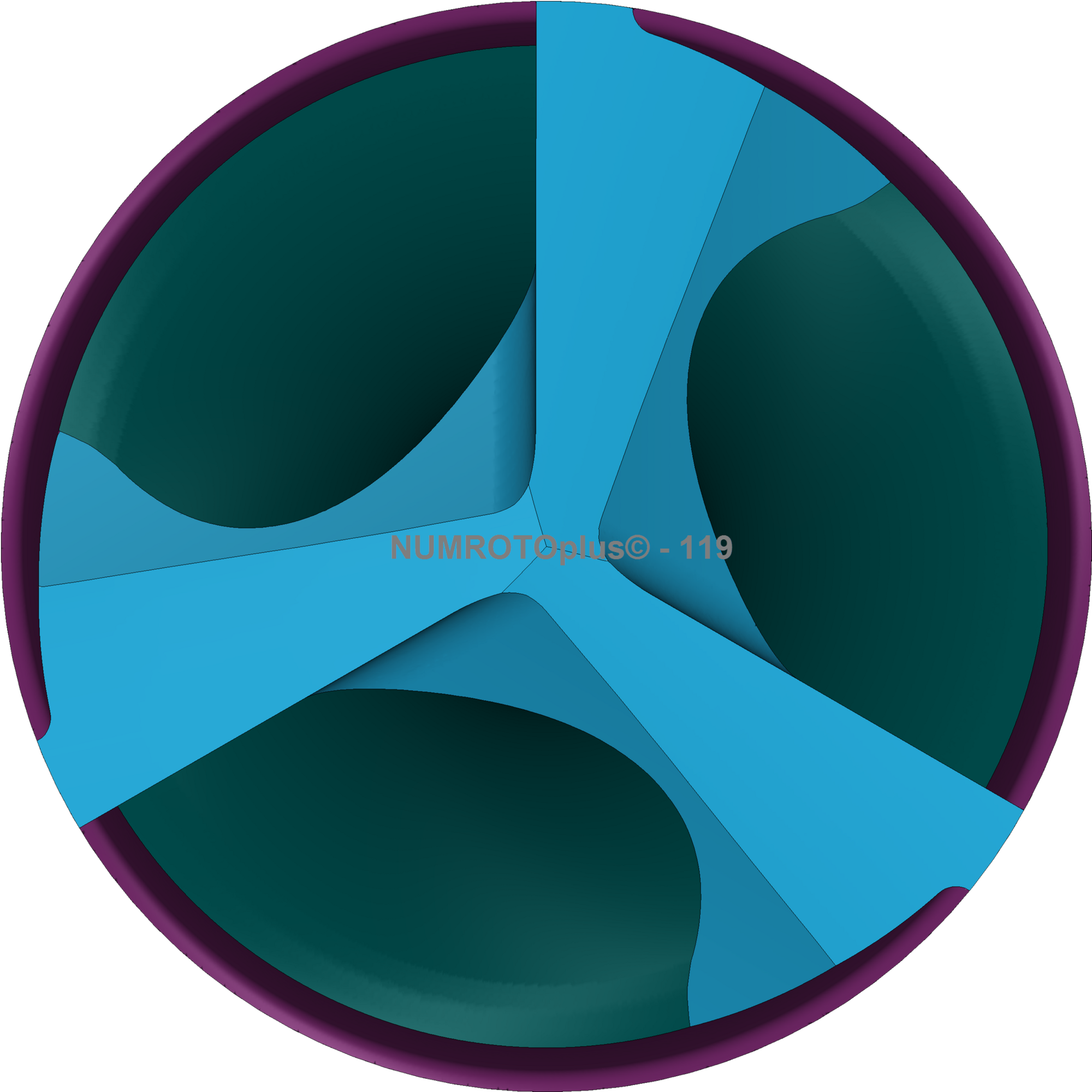

  • SP3 drill point

    • The SP3 drill point has 3 cutting edges.
    • The gash can be selected and the tip is ground with a spiral point which is either with a cup wheel or with a peripheral wheel.
    • This option demands item no. CH-50052380 (Complex drills / step drills).

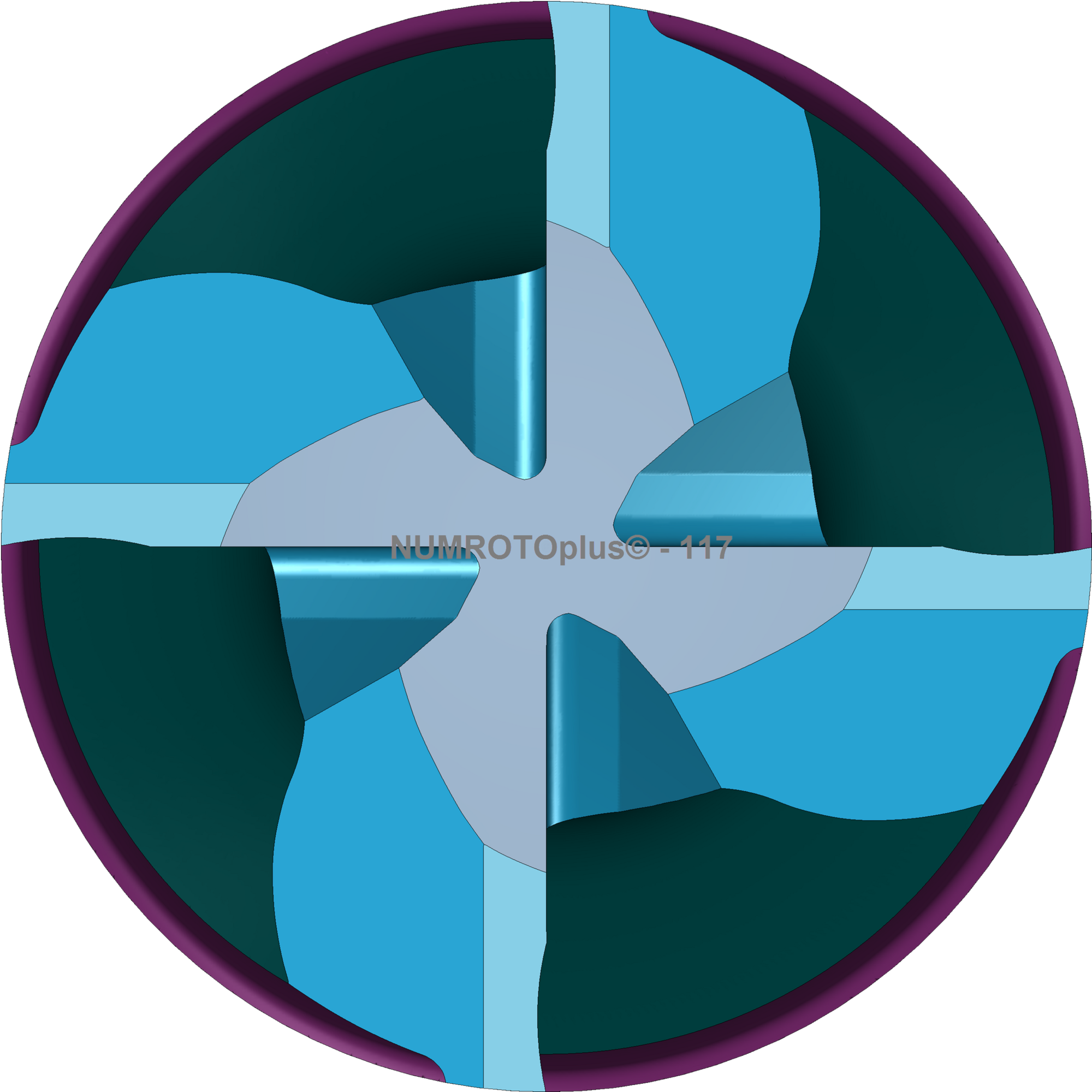

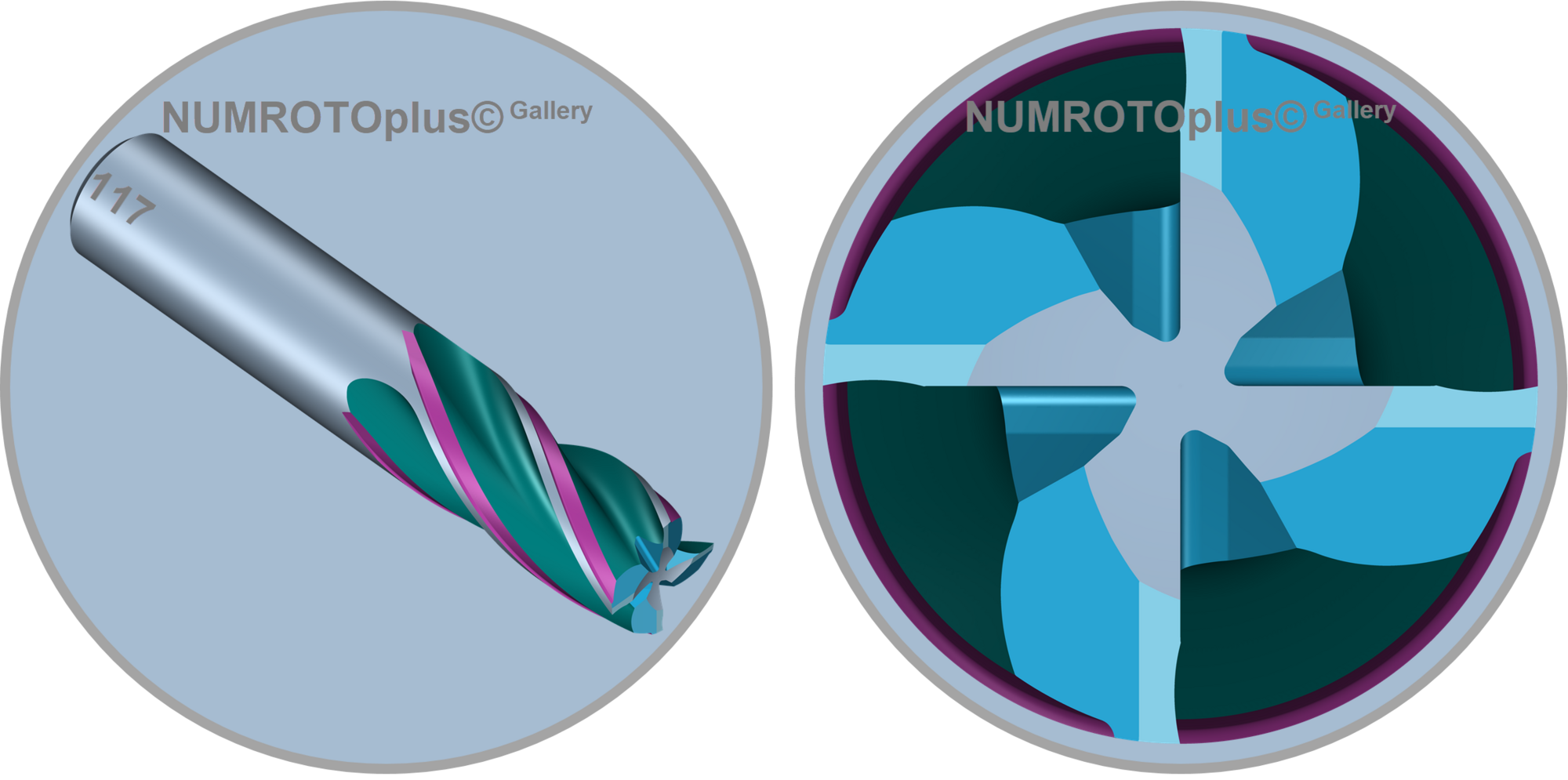

  • Sx drill point

    • The Sx tip is used for special procedures.
    • This option demands item no. CH-50052380 (Complex drills / step drills).

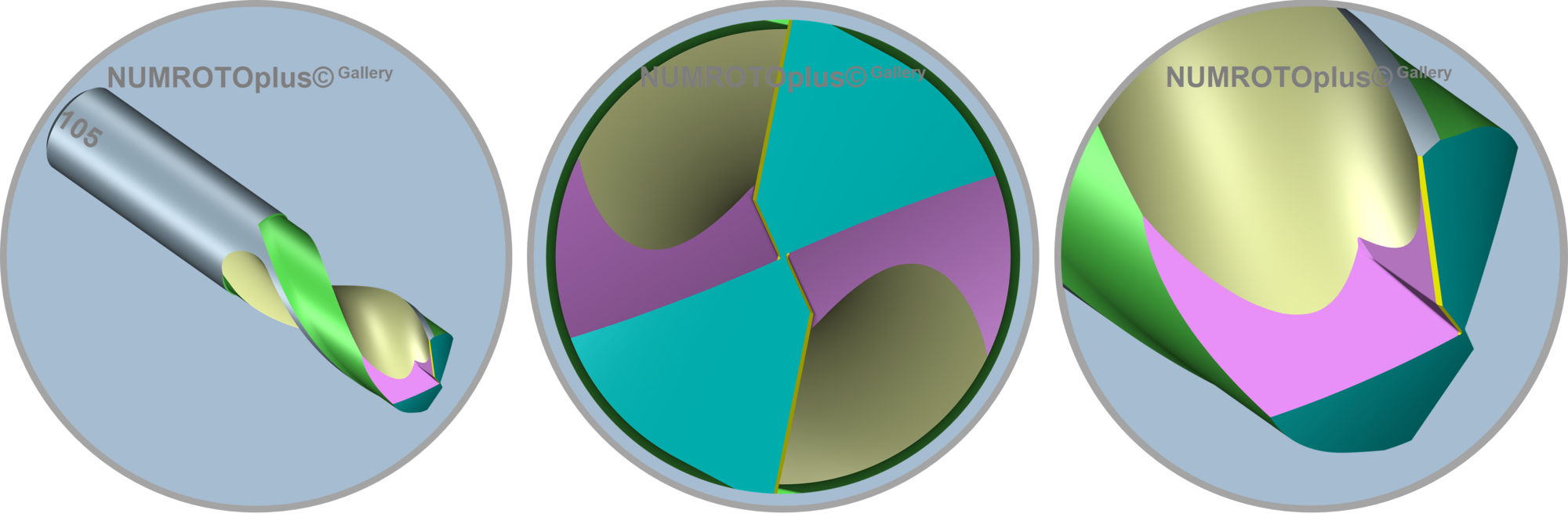

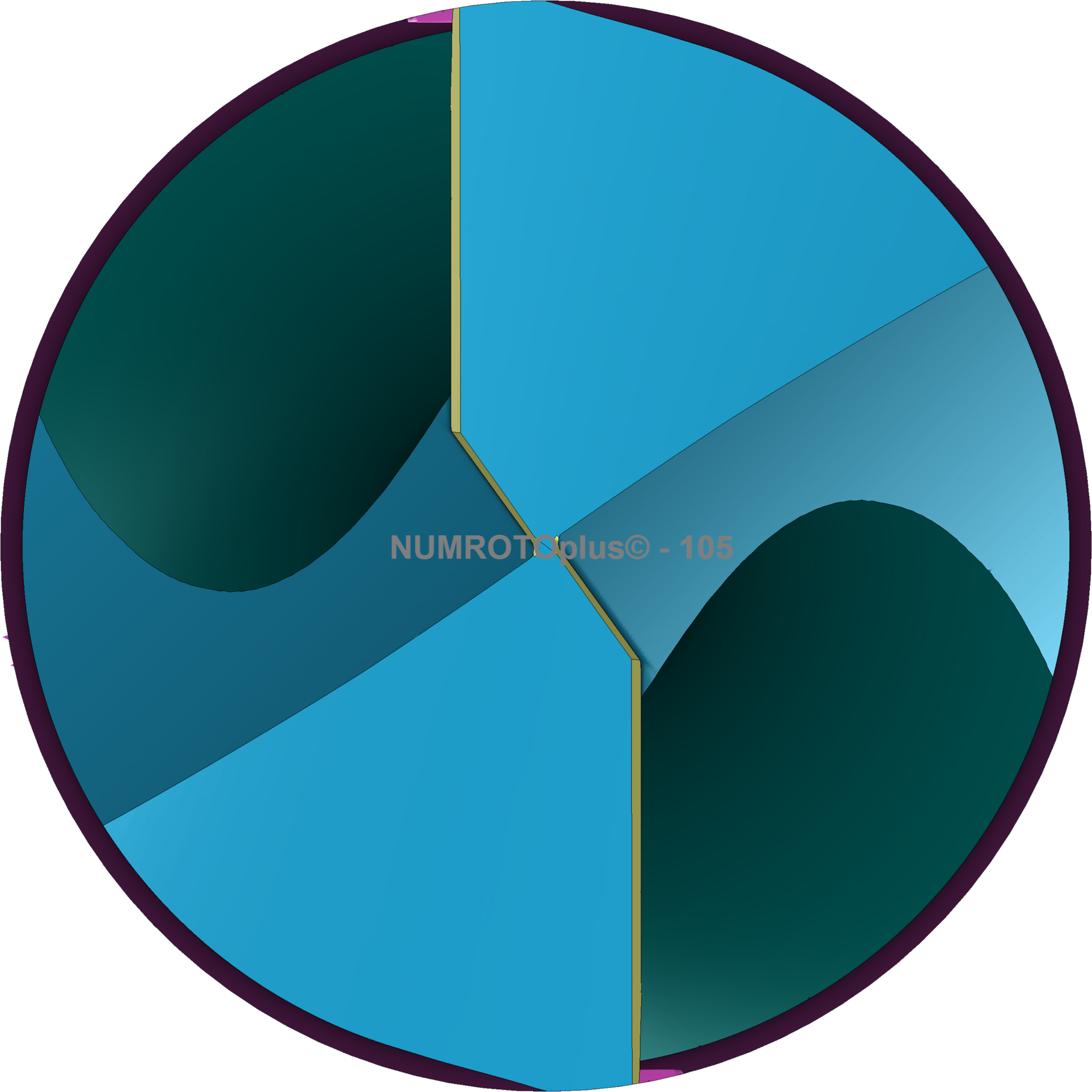

  • Klenk (WEGA) drill point

    • Drill point Klenk WEGA is protected by patent.
    • This option demands item no. CH-50052370 (Simple drills / step drills) and no. CH-50052470 (Klenk) and the approval by Klenk company.

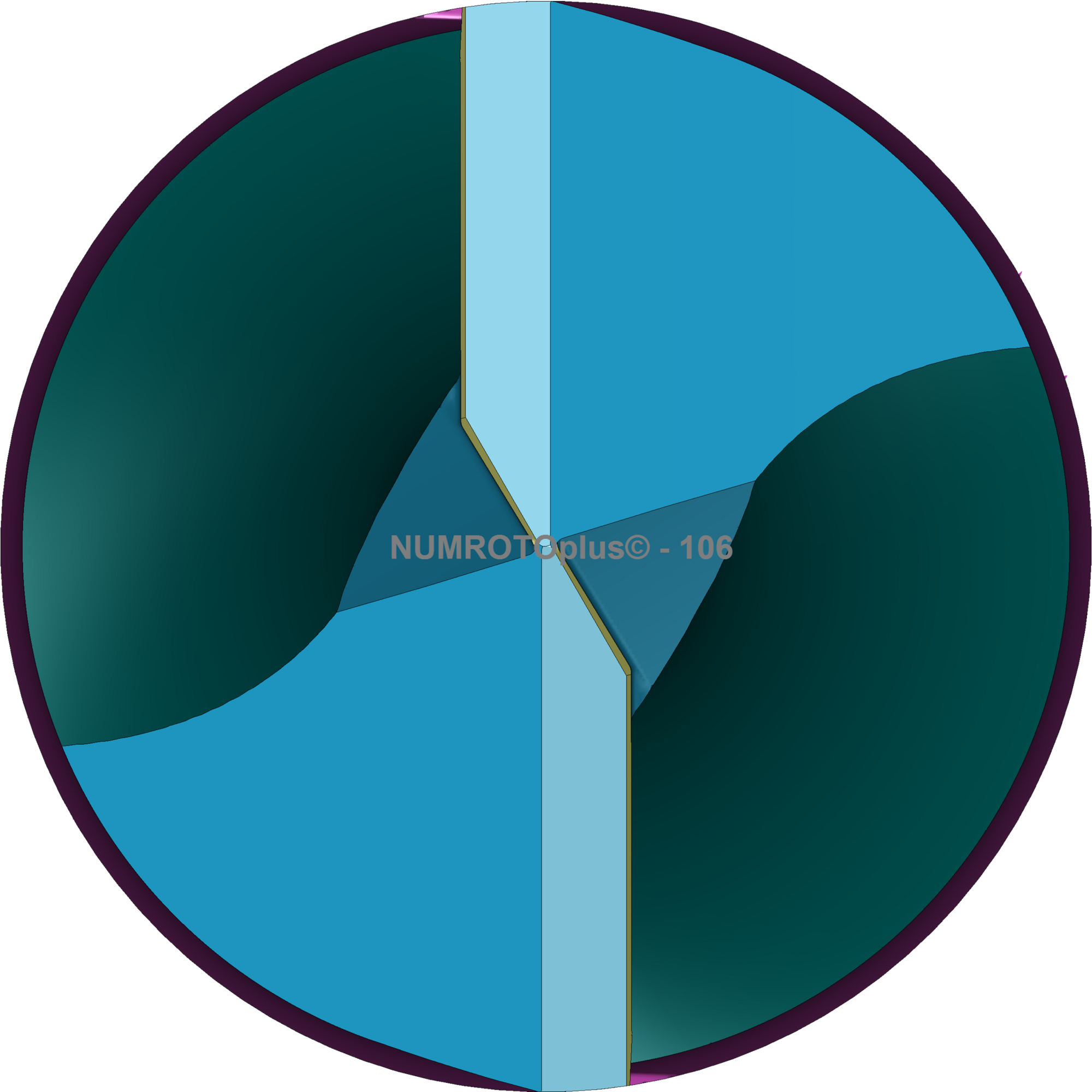

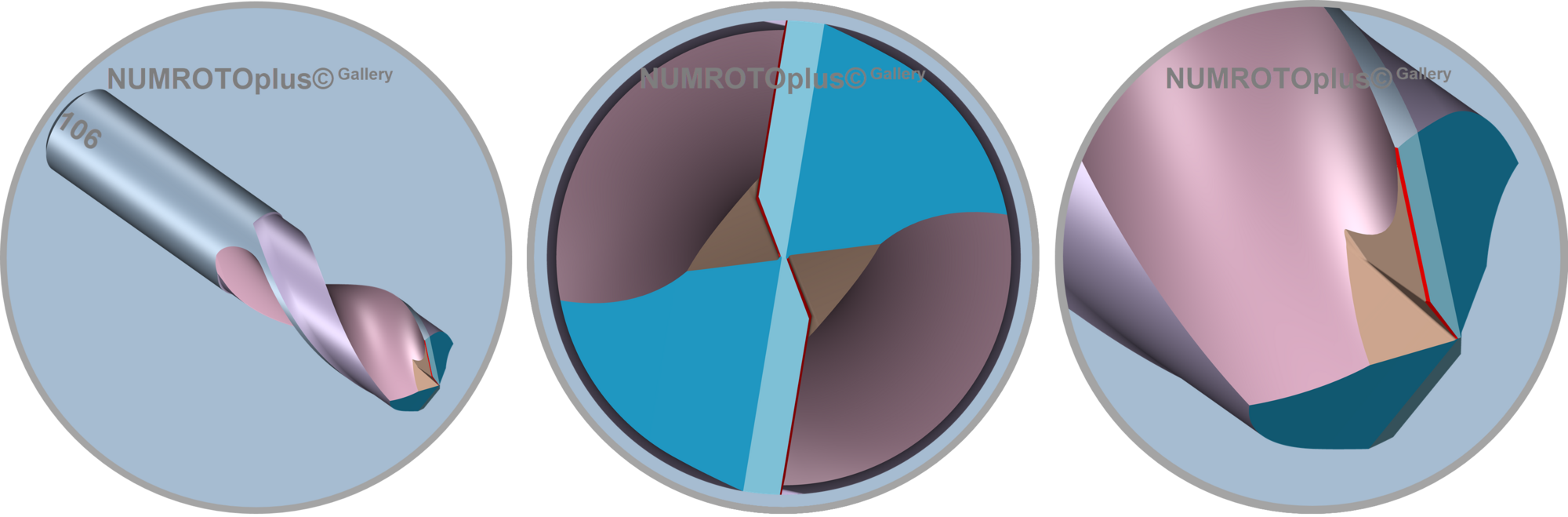

  • Klenk (Pollux) drill point

    • Drill point Klenk Polluxis protected by patent.
    • This option demands item no. CH-50052370 (Simple drills / step drills) and no. CH-50052470 (Klenk) and the approval by Klenk company.

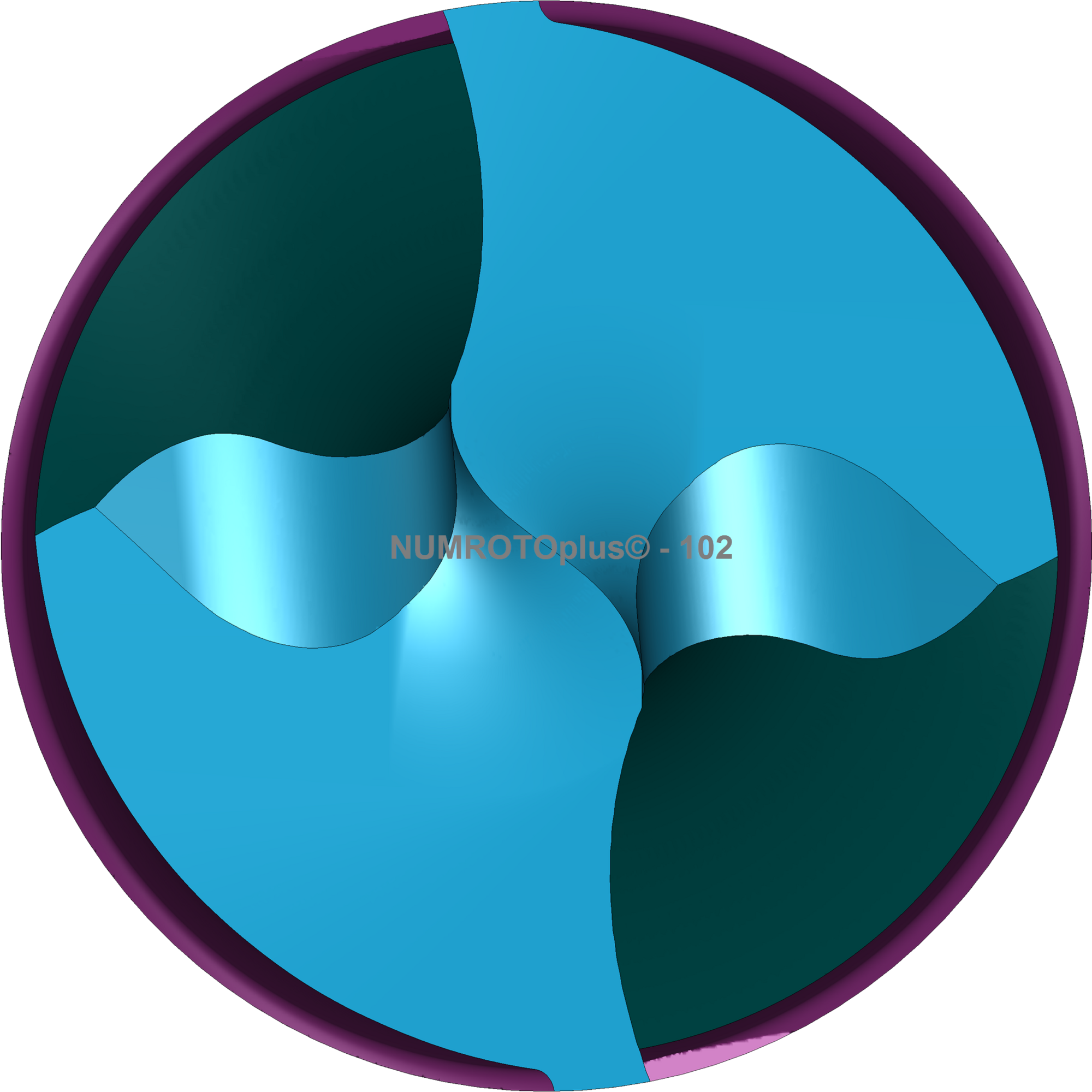

  • SE drill point

    • This option demands item no. CH-50052370 (Simple drills / step drills) and no. CH-50052090 (Kennametal SE/TF).
    • The original Kennametal formula is used.
    • Special grinding discs according to Kennametal specifications are required.

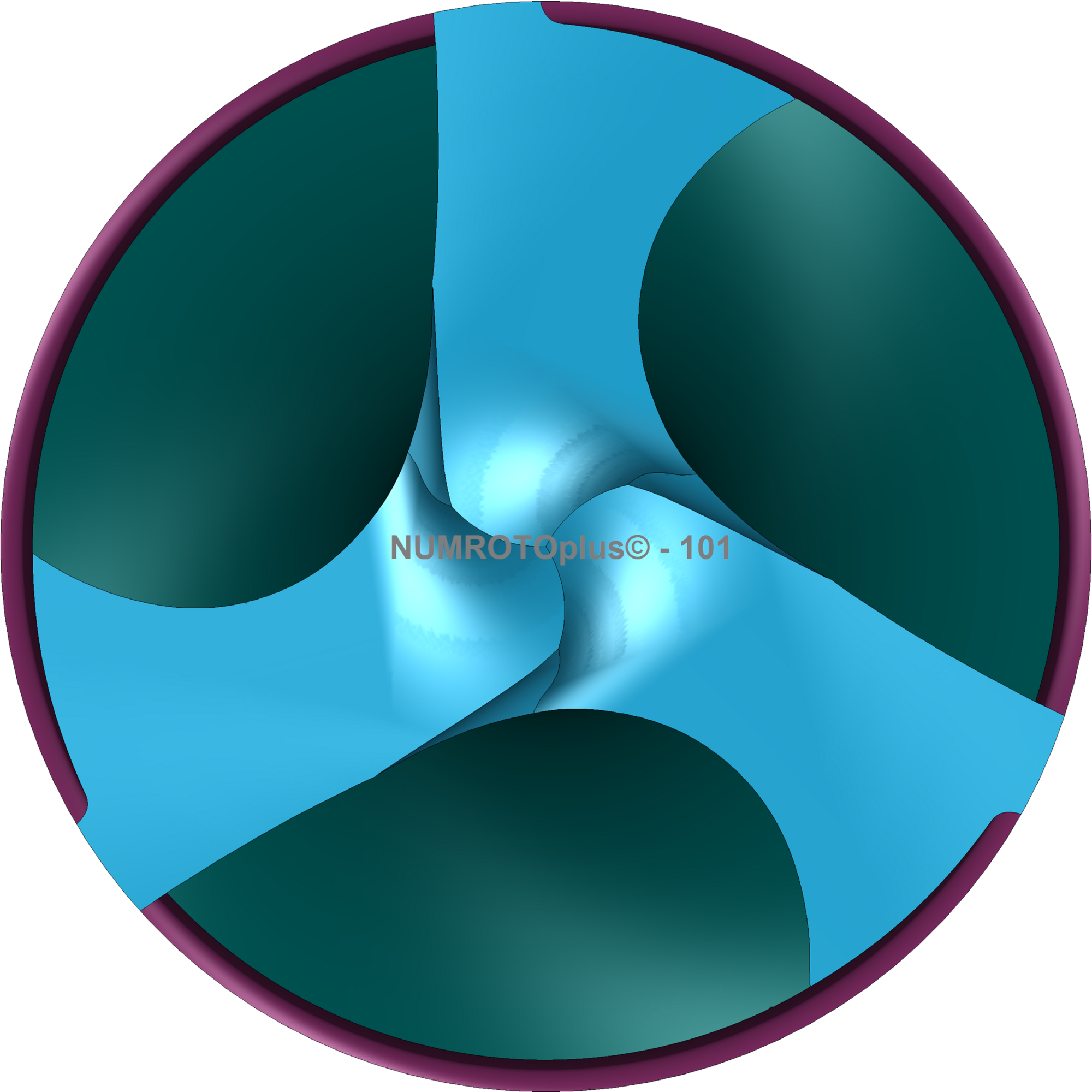

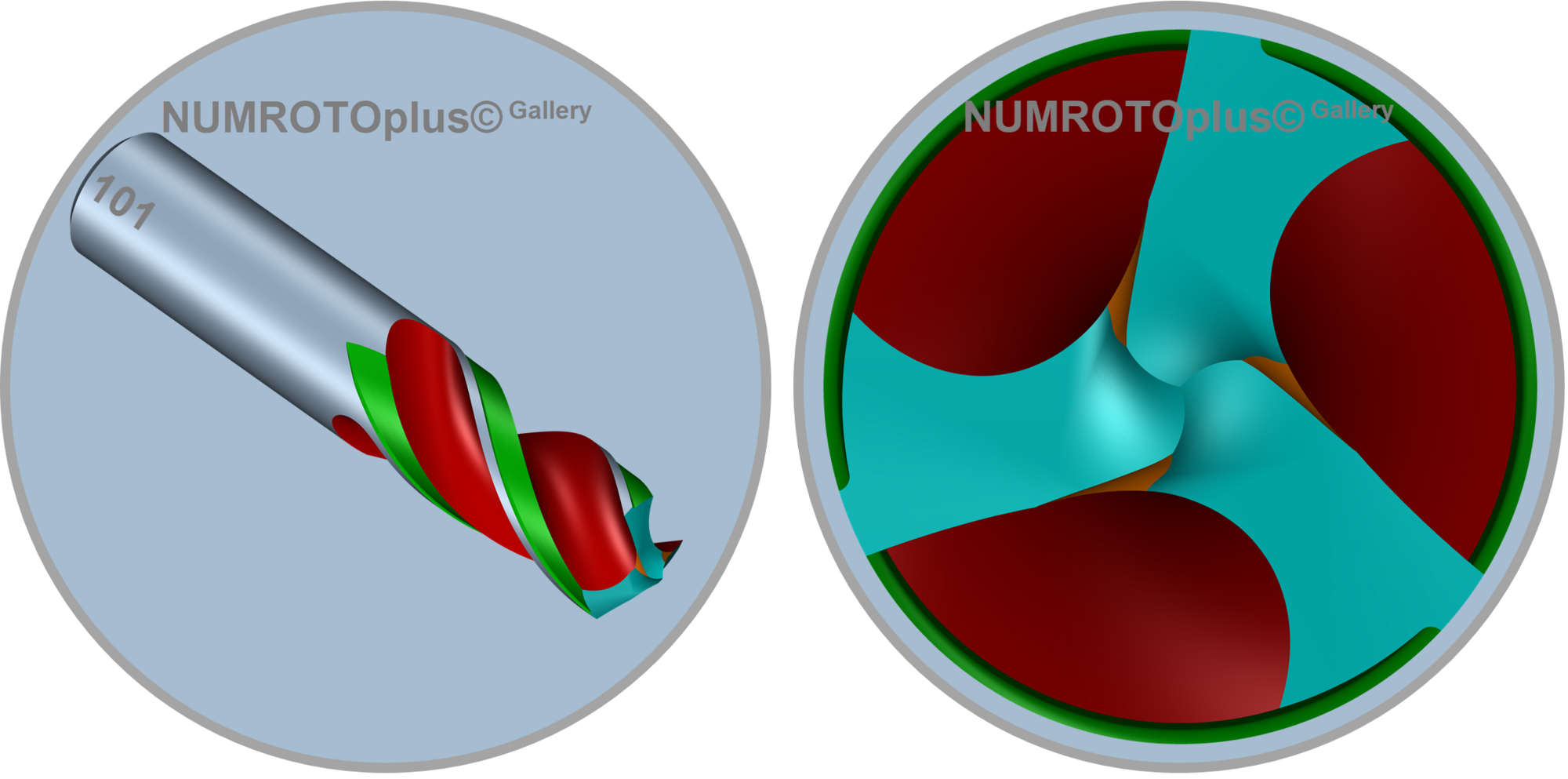

  • TF drill point

    • This option demands item no. CH-50052370 (Simple drills / step drills) and no. CH-50052090 (Kennametal SE/TF).
    • The original Kennametal formula is used.
    • Special grinding discs according to Kennametal specifications are required.

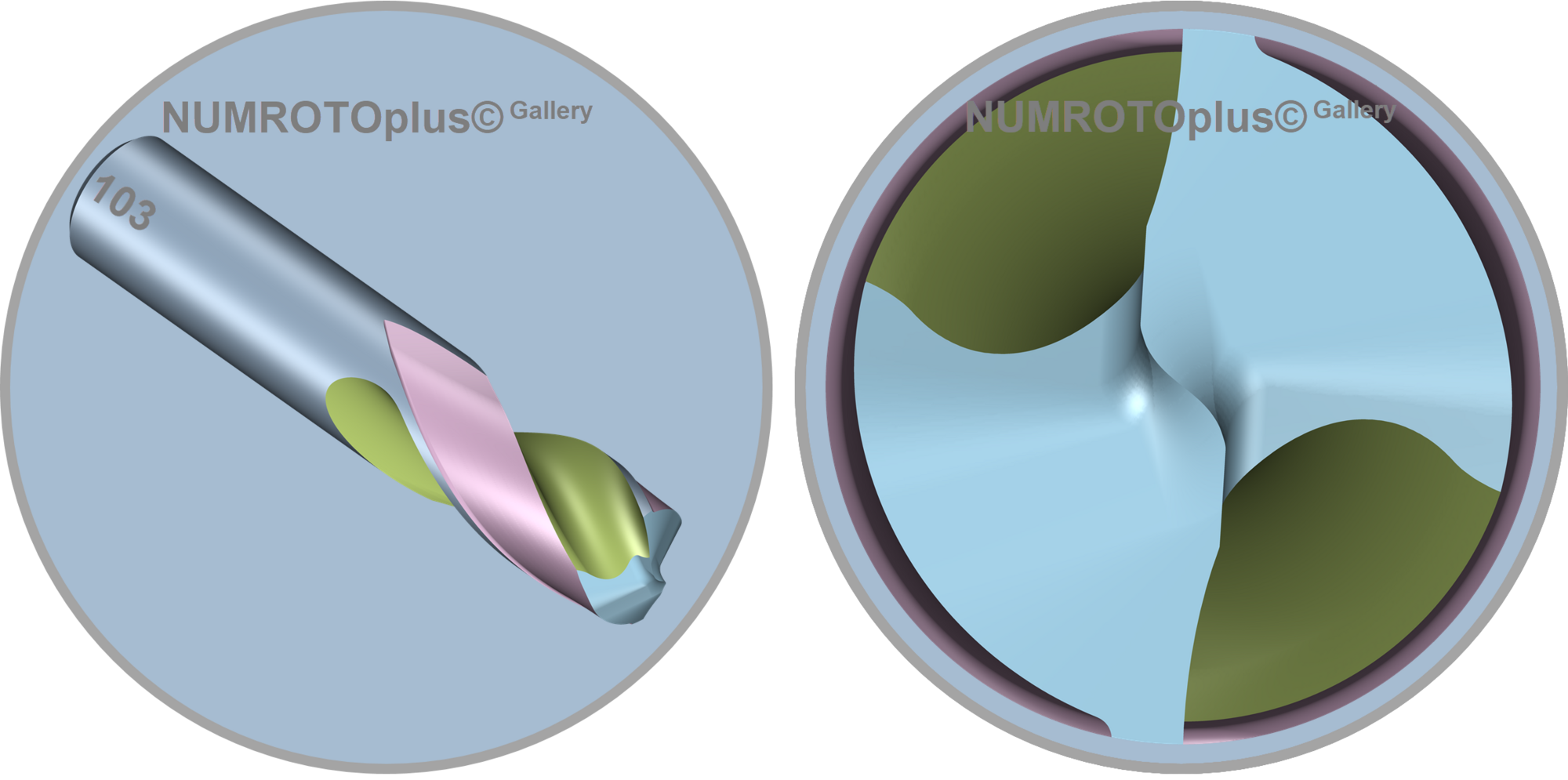

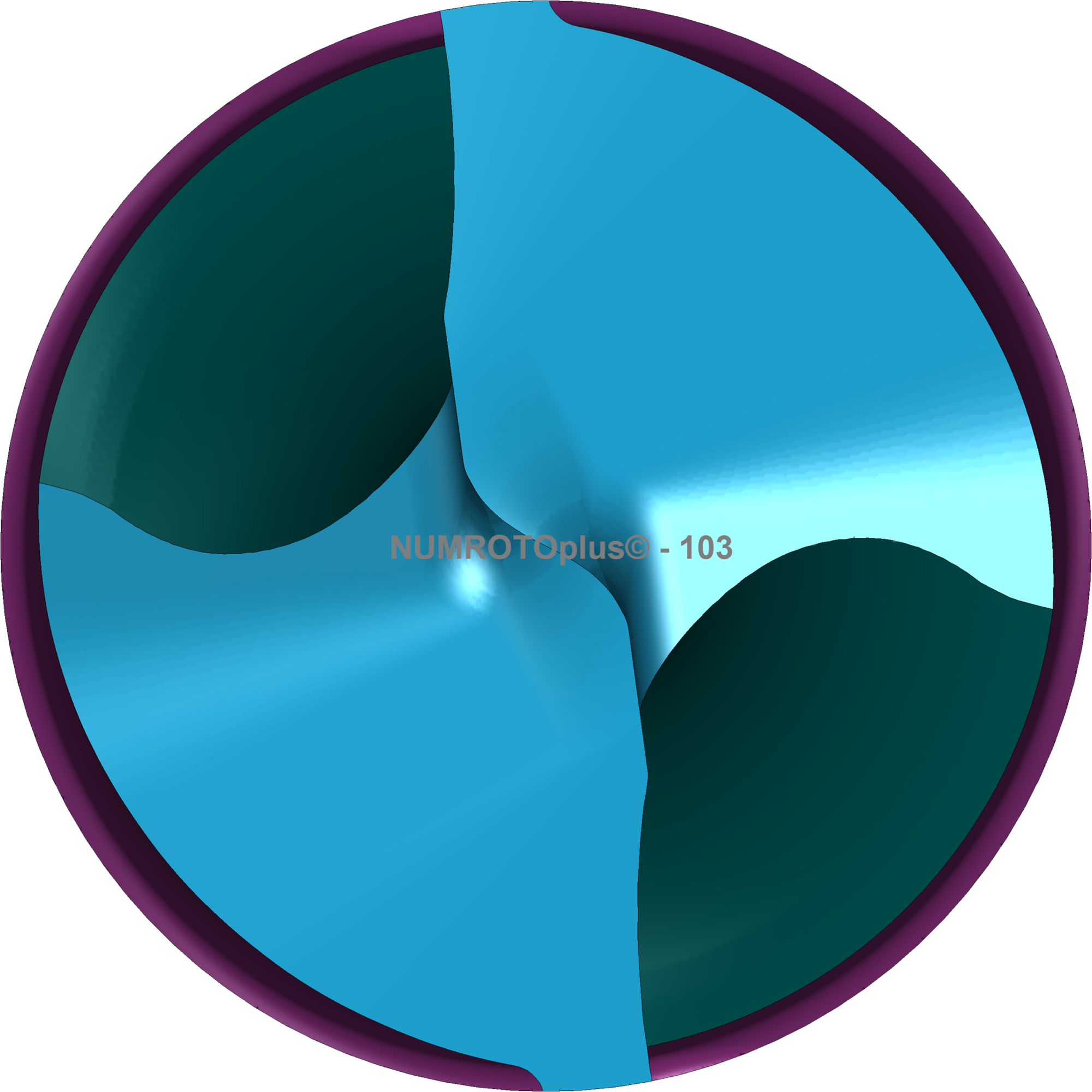

  • HP drill point

    • This option demands item no. CH-50052370 (Simple drills / step drills) and no. CH-50052490 (Kennametal HP) and the approval by Kennametal company.
    • The original Kennametal formula is used.
    • Special grinding discs according to Kennametal specifications are required.

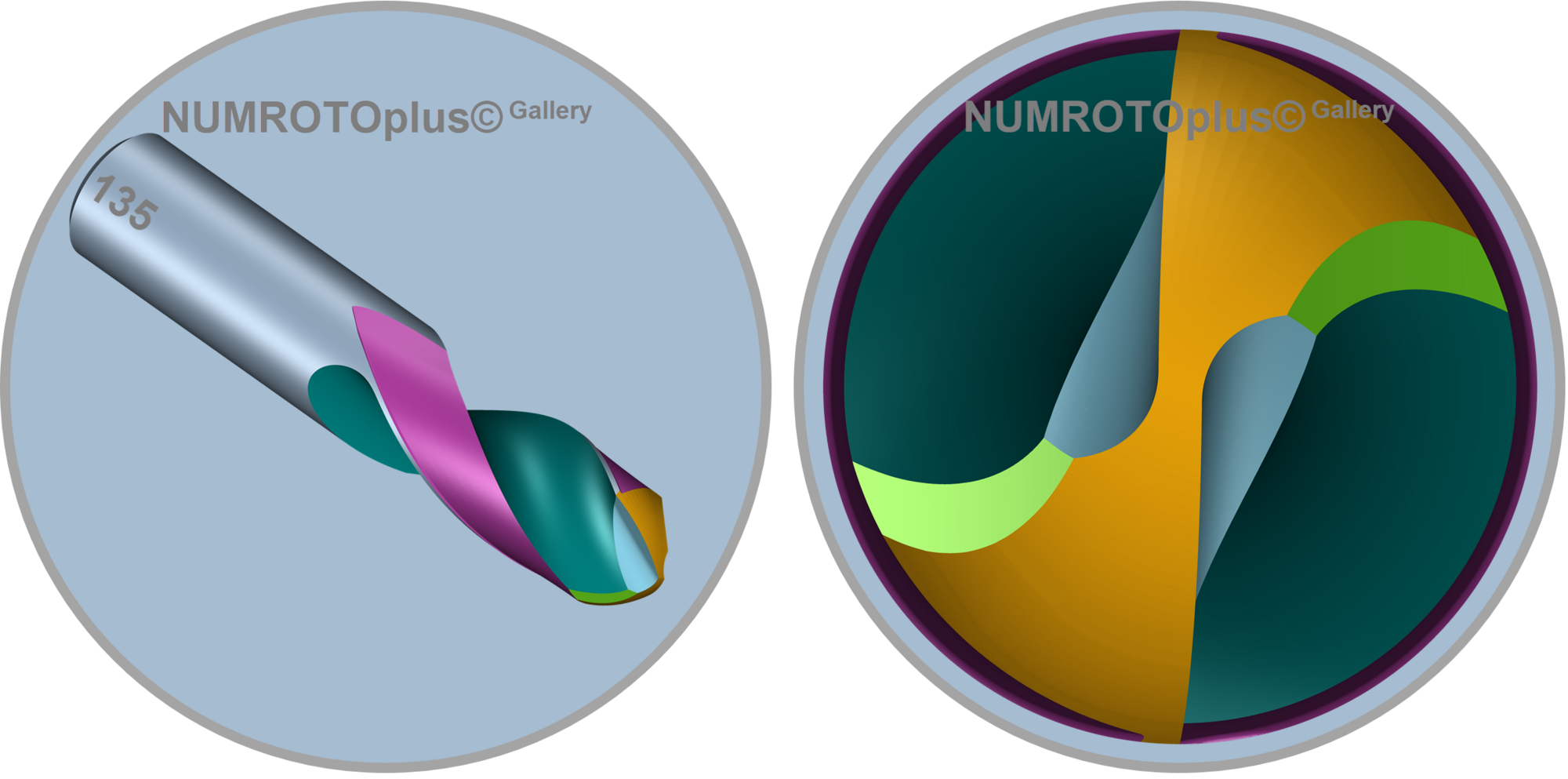

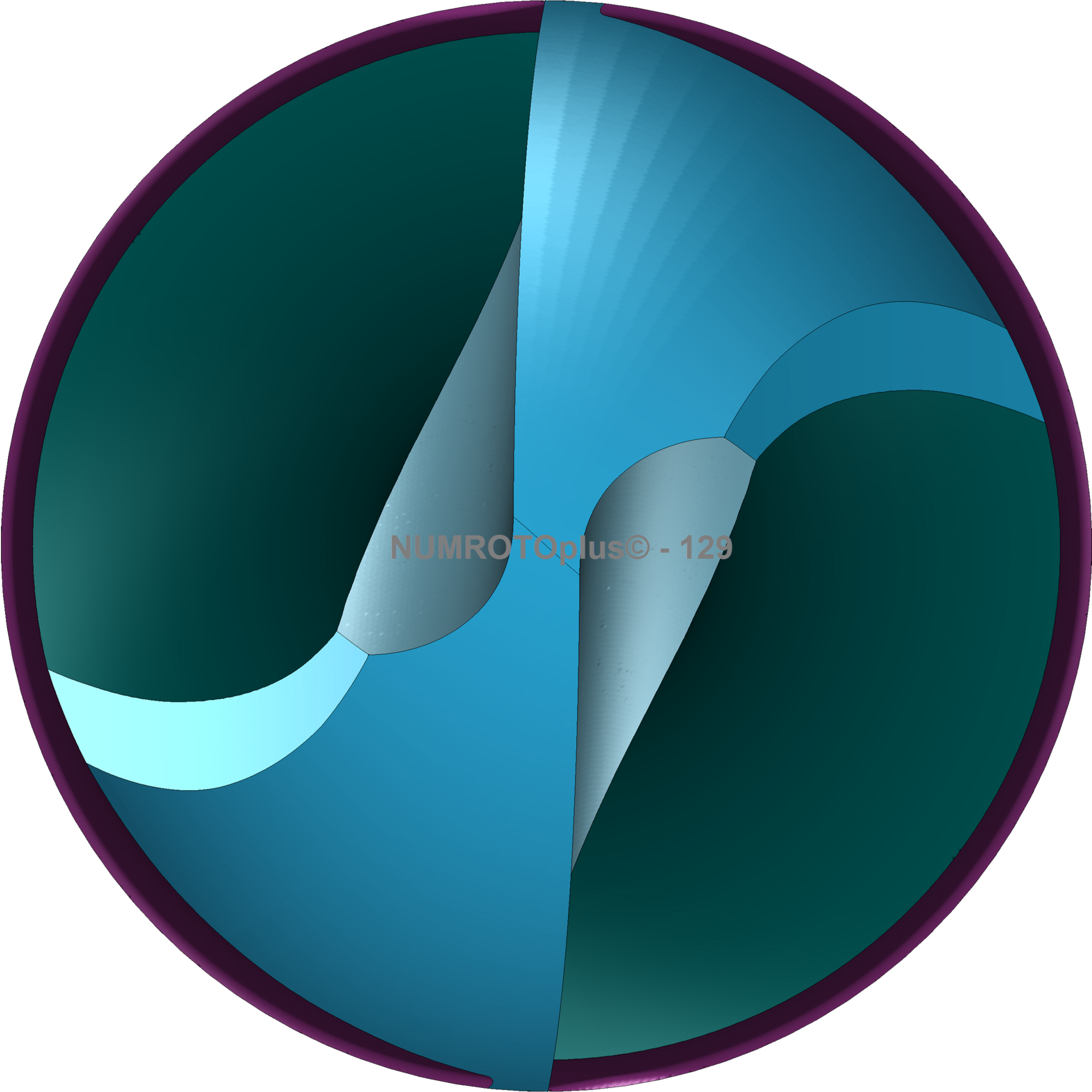

  • Guehring RT100 R drill point

    • Drill point Guehring RT100 RPolluxis protected by patent.
    • This option demands item no. CH-50052370 (Simple drills / step drills) and no. CH-50052700 (Guehring RT100 R) and the approval by Guehring company.

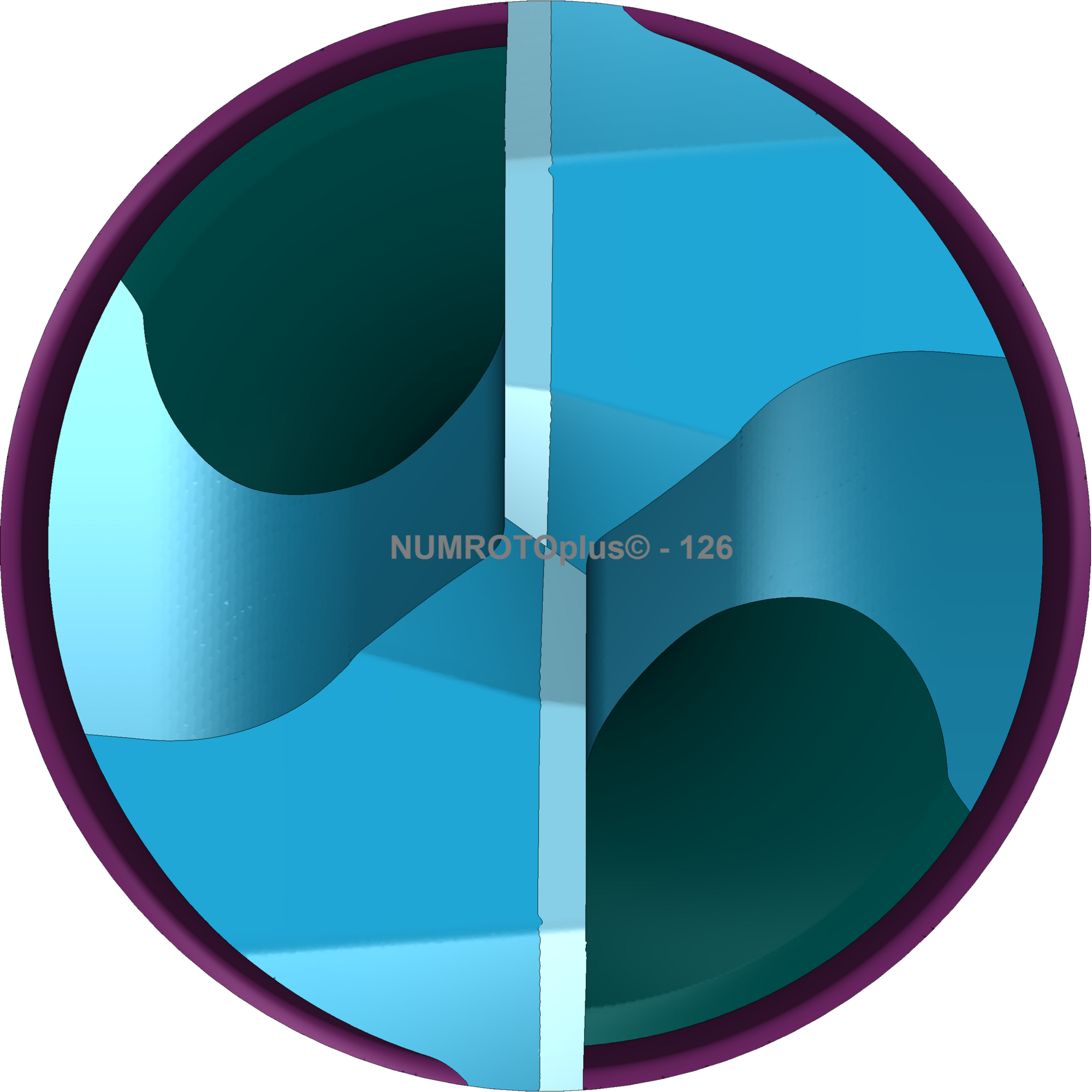

  • Multi angle point drill point

    • The multi angle drill point is mainly used for wood drills.
    • This option demands item no. CH-50052370 (Simple drills / step drills) and no. CH-50052480 (Special grinding functions).


  • Gun drill point

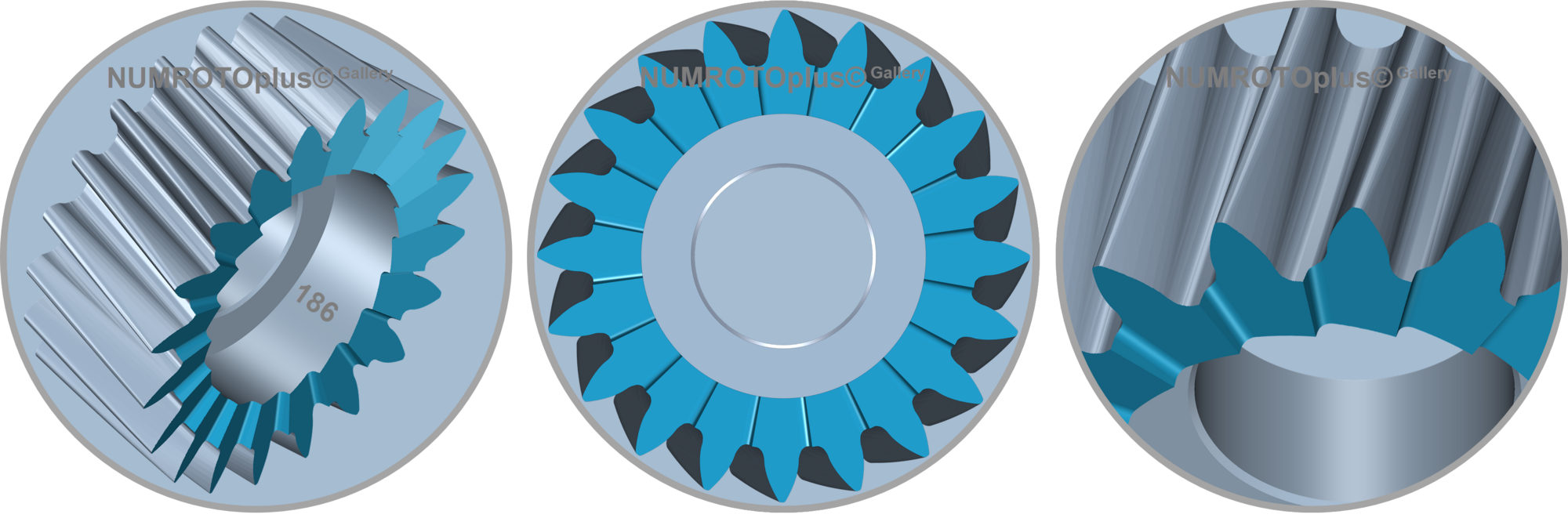

  • Shaper cutter drill point
