Advanced CNC retrofit package gives new lease of life to hob sharpeners
In collaboration with NUM, machine tool rebuilder North East Technologies Inc. has developed a CNC retrofit package that brings the performance of early generation hob sharpening equipment up to modern-day standards. The system doubles accuracy and can increase the productivity of machines immensely – by margins of 40% or more. By extending the life of hob sharpening machines and enhancing their performance significantly, the retrofit provides gear manufacturers and tool service companies with a highly cost-effective alternative to purchasing new equipment.
North East Technologies specialises in servicing and rebuilding hob sharpening equipment. The company is renowned for its knowledge of the gear manufacturing process, and a major part of its business is retrofitting modern control systems to early generation hob sharpeners – such as the SNC 30 and AGW Series machines originally produced by Klingelnberg back in the 1980s. To expedite refurbishment, North East Technologies decided to develop a ‘standard’ high performance CNC retrofit package that could readily be adapted to different machine configurations.

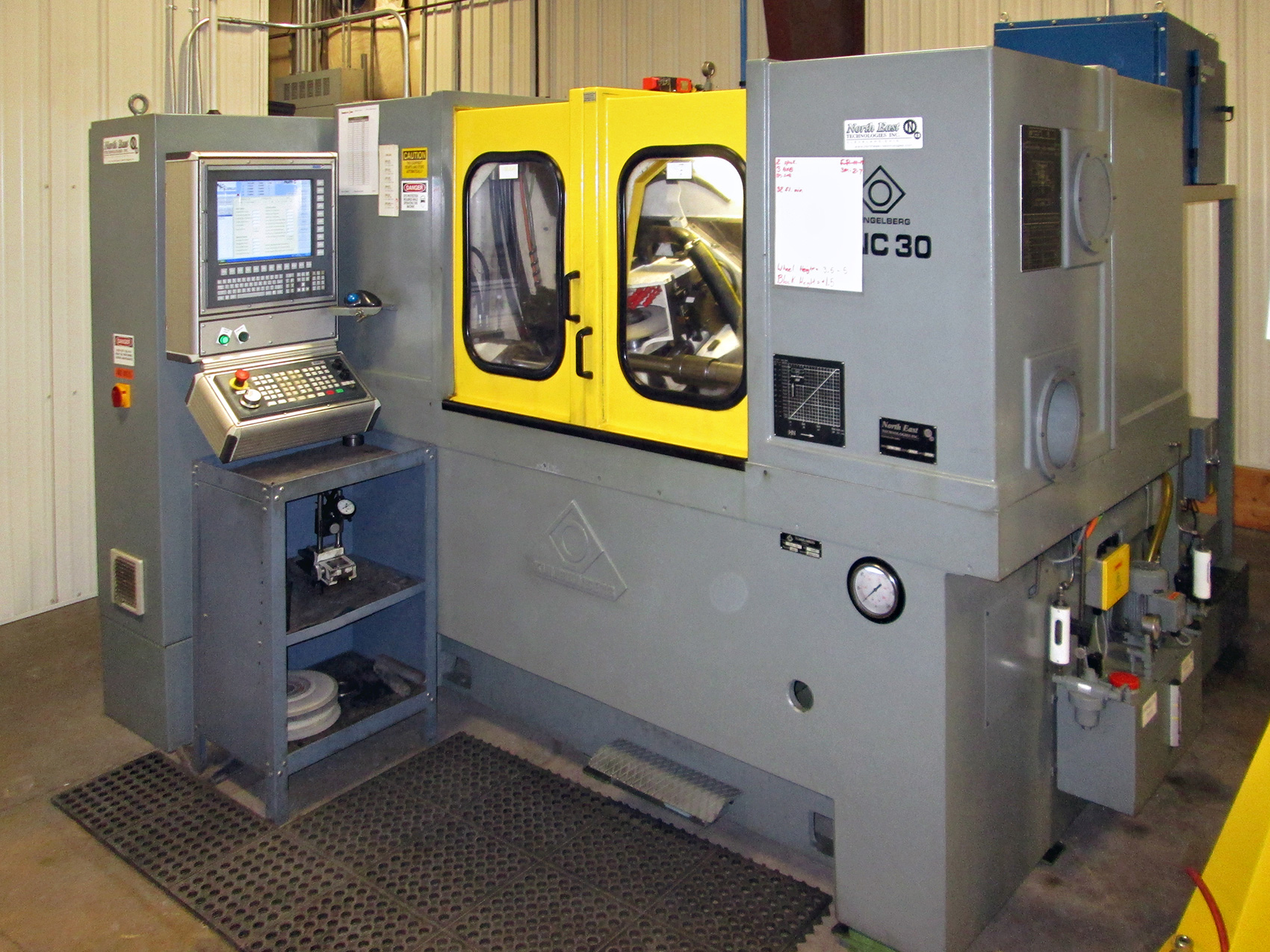

Most companies that cut gears or service gear cutting tools have at some time used Klingelnberg SNC 30 hob sharpeners. Capable of handling work pieces up to 300 mm (12 inches) in diameter, they can grind helically fluted hobs to a depth of 90 mm (3.5 inches). They are widely regarded as an industry standard – there are hundreds of these machines in the USA alone, many of which have been in continual use for 25 or more years. However, despite still being mechanically sound, most of these machines are showing signs of age. Their motion control hardware is not up to today’s standards in terms of speed, accuracy or efficiency, so the machines act as a production bottleneck. And as their original CNC systems become increasingly unreliable, and use obsolete components, rising support costs and downtime eventually renders them ineffective.
When choosing a control solution provider for the retrofit package, North East Technologies was heavily influenced by its customers, many of whom request NUM’s CNC technology for machine upgrades. Most of these customers regard NUM’s gear hobbing solution, NUMgear, as the best in the industry, and are aware of the local development resources that can add further functionality from NUM Corporation‘s headquarters in Naperville.
According to Harry Salverston, President of North East Technologies, “NUMgear provided much of the functionality we needed for our hob resharper retrofit at the outset, making it an ideal platform. And NUM‘s willingness to assist us in developing application-specific features, such as a custom HMI and special machine code, confirmed this choice. NUM effectively acted as an extension to our own engineering resources to help speed development.”

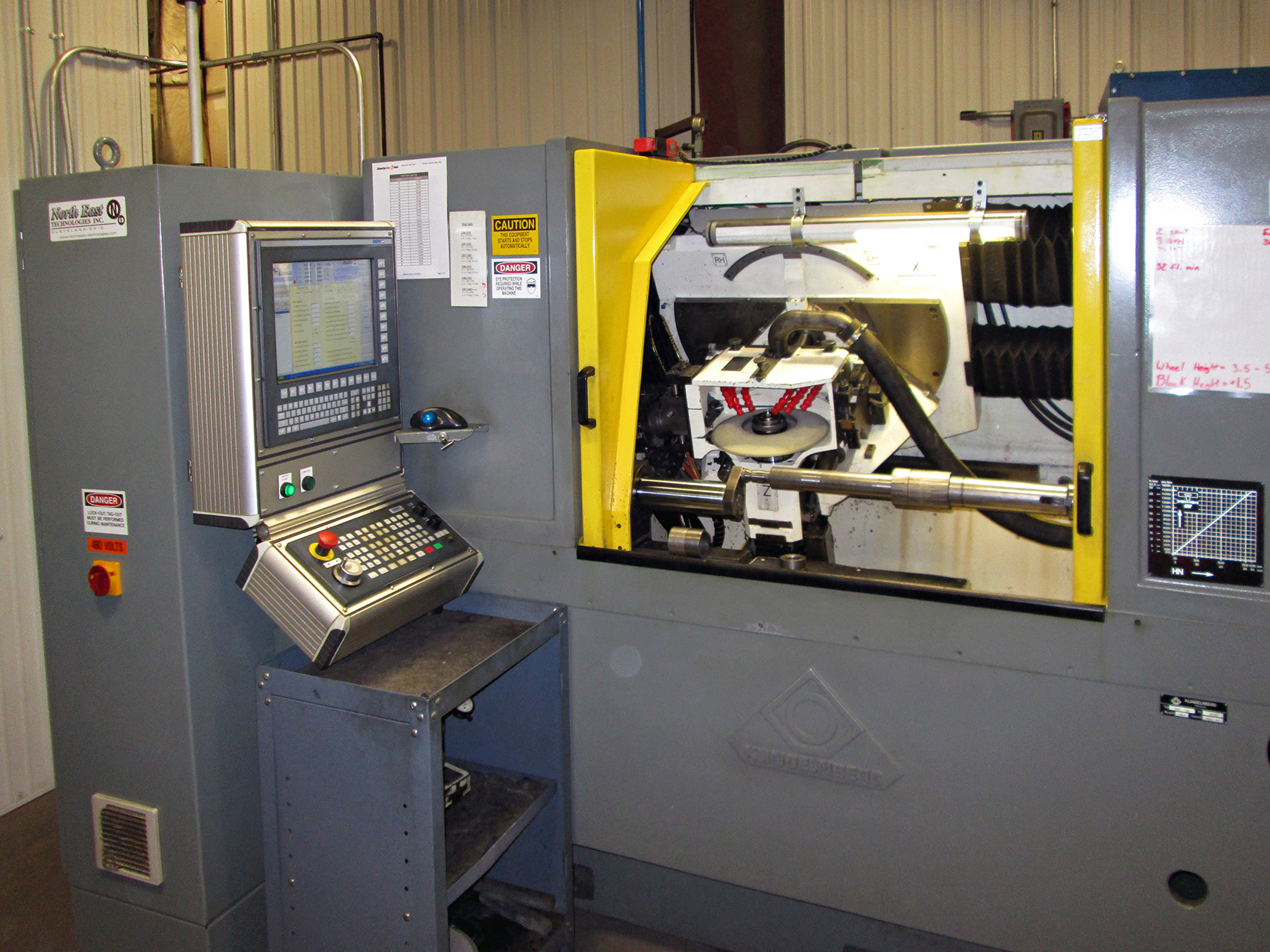

The CNC retrofit package content depends on the hob sharpener’s configuration. Basic SNC 30 machines have two CNC axes as standard – one (X) for the wheelhead slide and the other (A) for the workpiece spindle – and can be fitted with a further two optional axes to automate axial (Y) and radial (Z) movement of the wheelhead. In addition to upgrading the machine’s controller to a NUM CNC system, the retrofit replaces all motors and drives with high performance NUM servomotors and NUMDrive C servo drives. The new servomotors have high resolution 262,000 pulse/rev encoders – the original motors had 1,000 pulse/rev devices – which provide much more accurate control of speed and position.

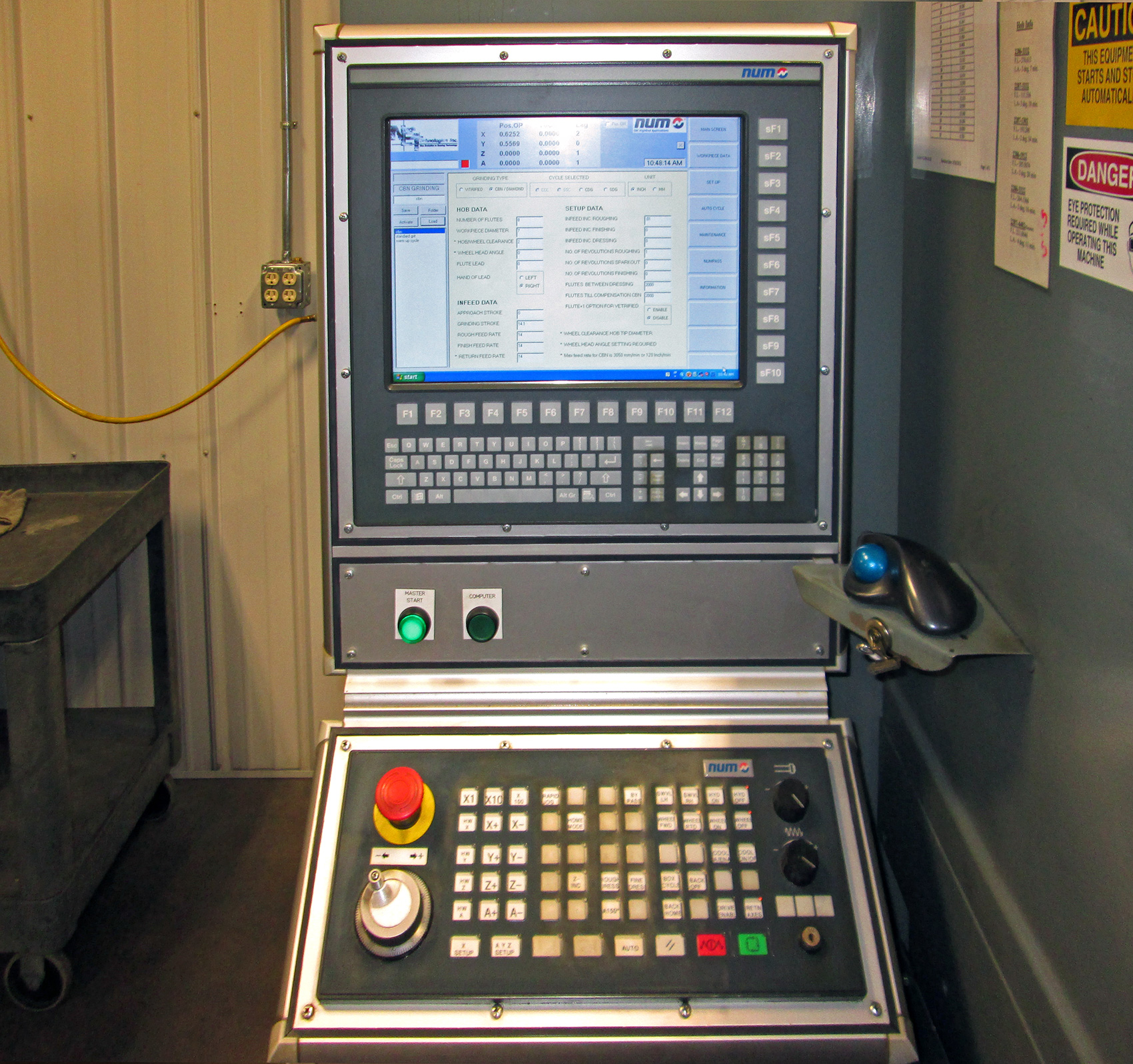

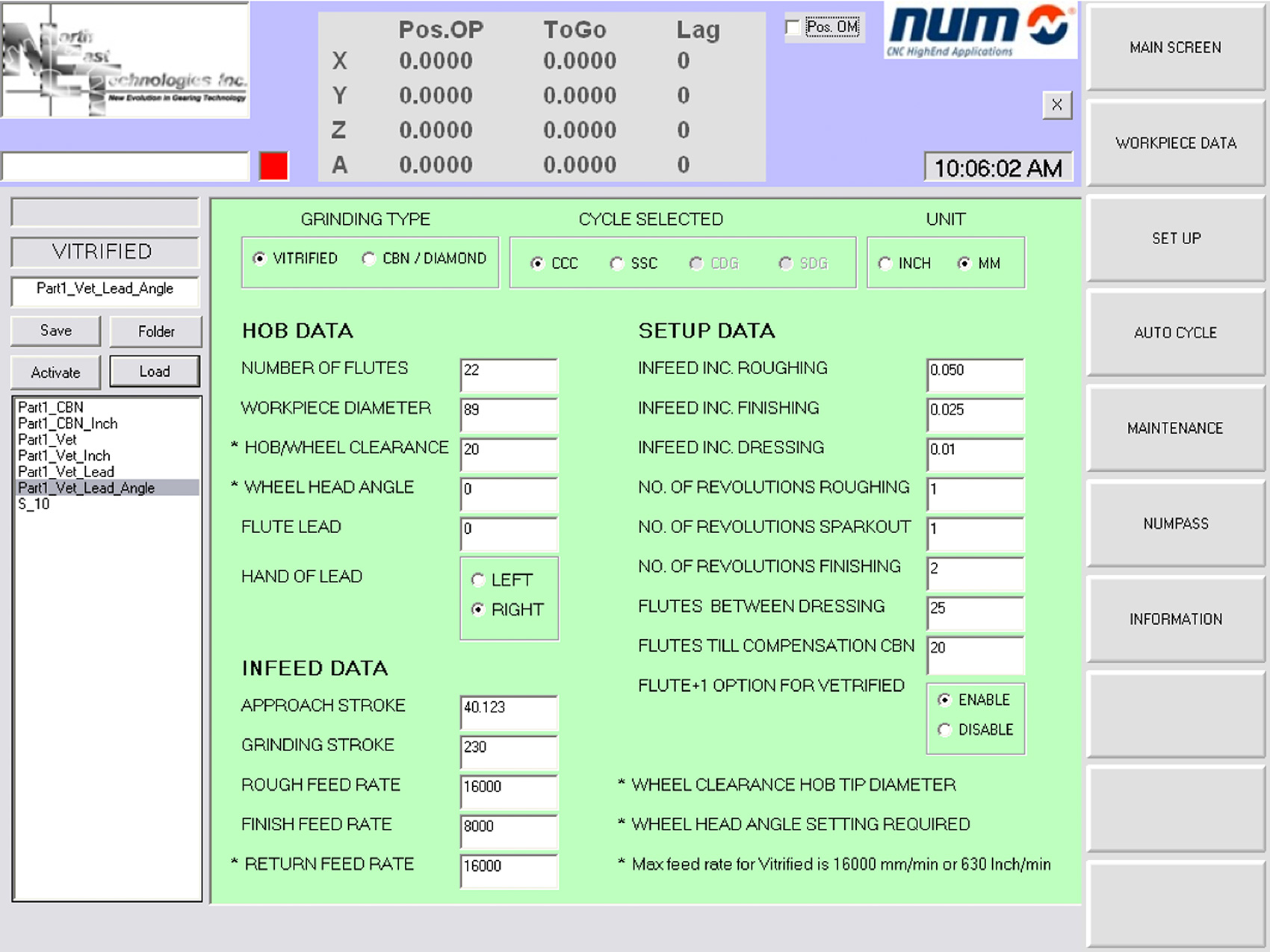

Considerable attention has been paid to ensuring that the HMI of the CNC retrofit preserves the familiar ‘look and feel’ of the original SNC 30 operating system. A ‘fill in the blanks’ programming method, backed by custom control macros, means that the machine operator is not presented with unfamiliar CNC nomenclature, and simply enters parameters such as the length of flute and the amount of material to be removed. Each screen is context-sensitive to eliminate ambiguity. For example, selecting a grinding cycle that uses a CBN (carbon boron nitride) wheel opens a folder that only contains options for CDG (conventional deep grinding) and SDG (single flute deep grinding), with dressing disabled. The software also allows the operator to ‘teach’ the machine the relative positions of the X,Y, Z and A axes under manual control, enabling grinding cycles for different hobs to be developed very easily.
To maximise flexibility, the application accommodates multiple hob sharpening methods, including removal of stock in one or both directions of wheelhead traverse. For straight fluted hobs, as soon as one flute has been sharpened the workpiece is indexed through to the next flute and sharpening recommences. Utilising the Flexium CNC system’s ‘Dynamic Operator’ (DynOp) function, the machine builder can create custom axes linkage or compensation in real time, at the position loop clock cycle. In the case of sharpening helically fluted hobs, this unique DynOp feature allows the rotary (A) axis to be transparently synchronised to the X axis, so the grinding wheel accurately follows the helix angle.
(September 2013)
