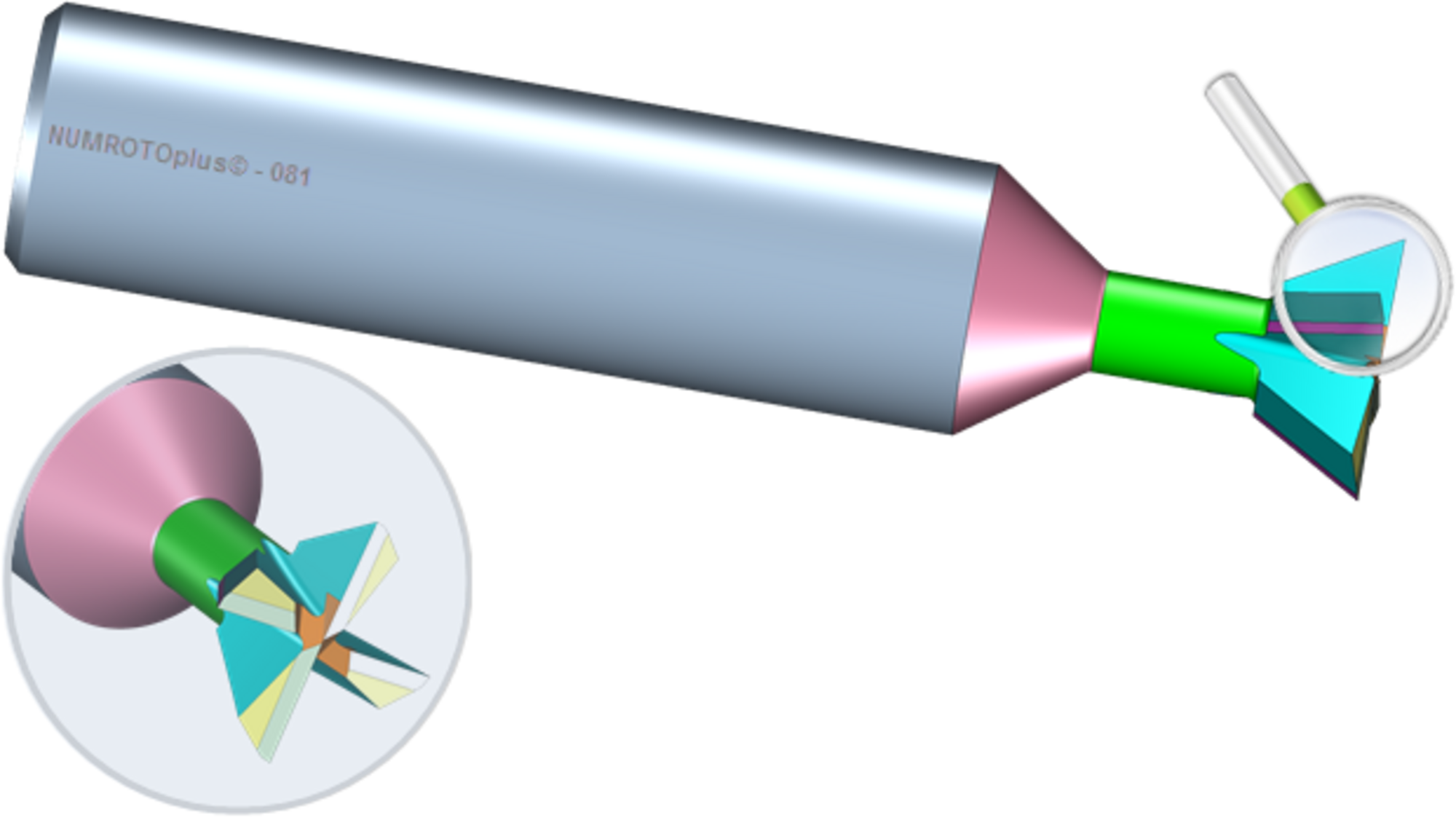

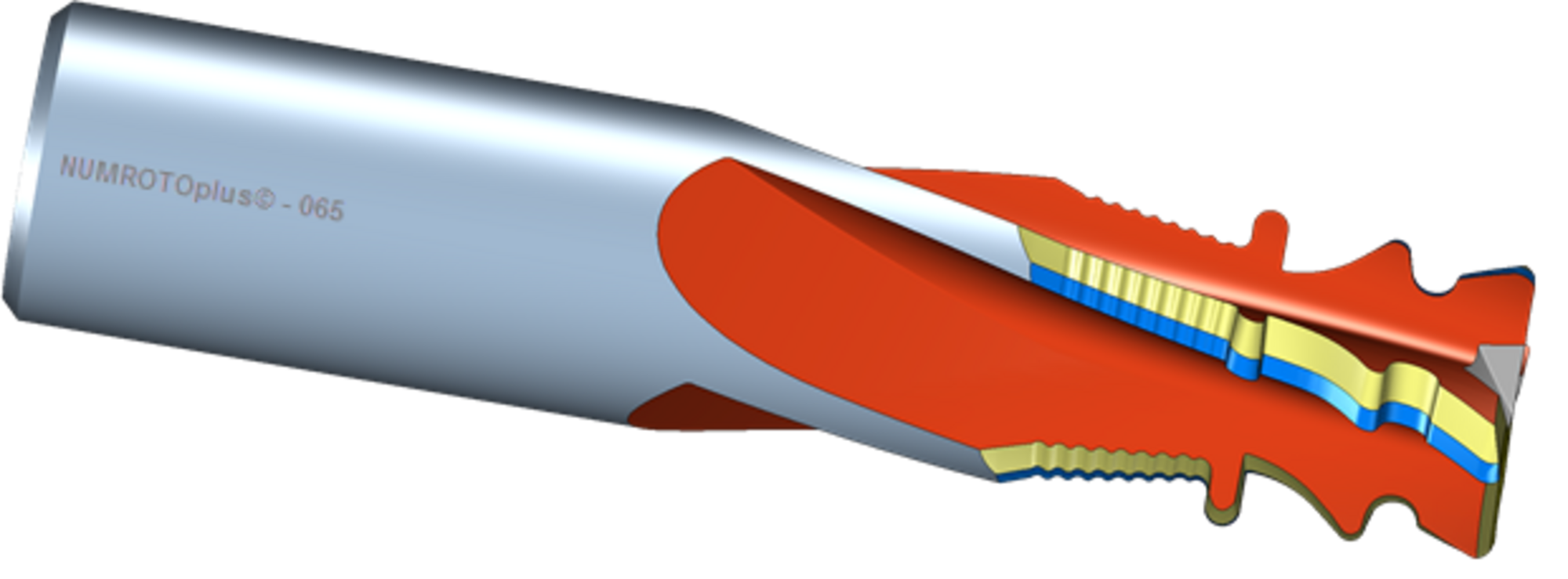

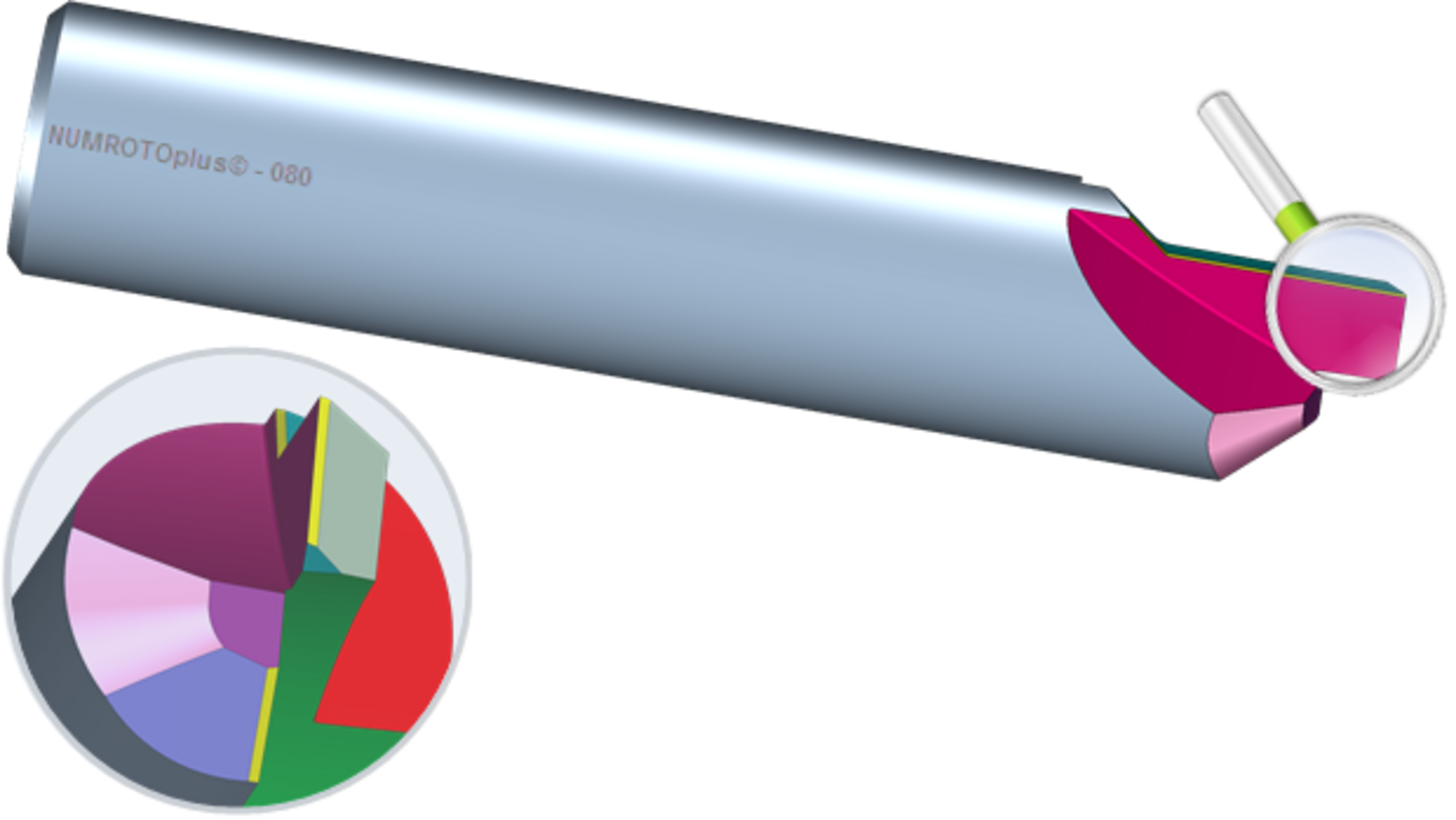

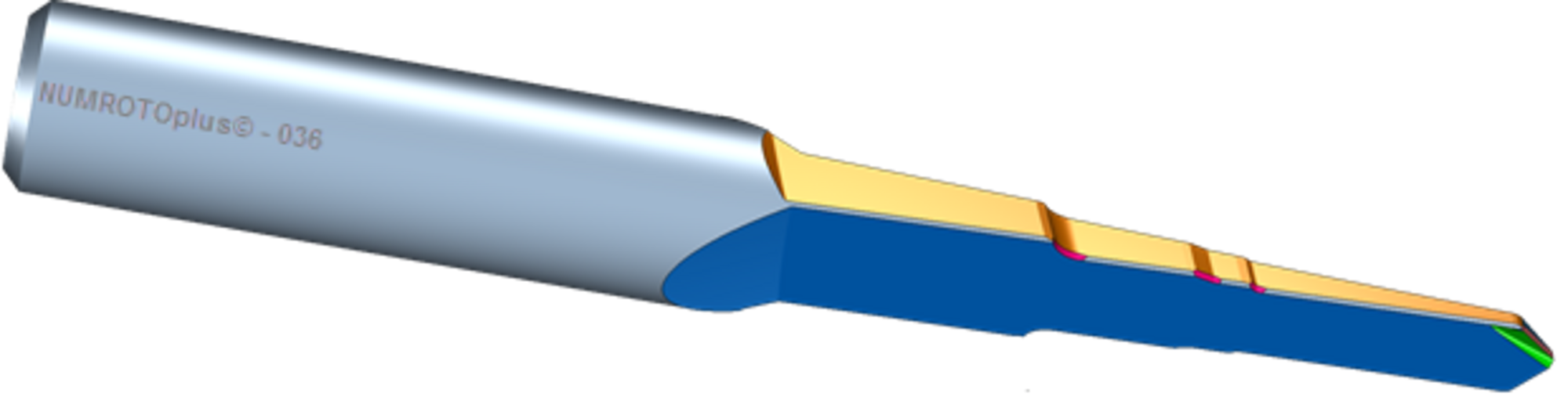

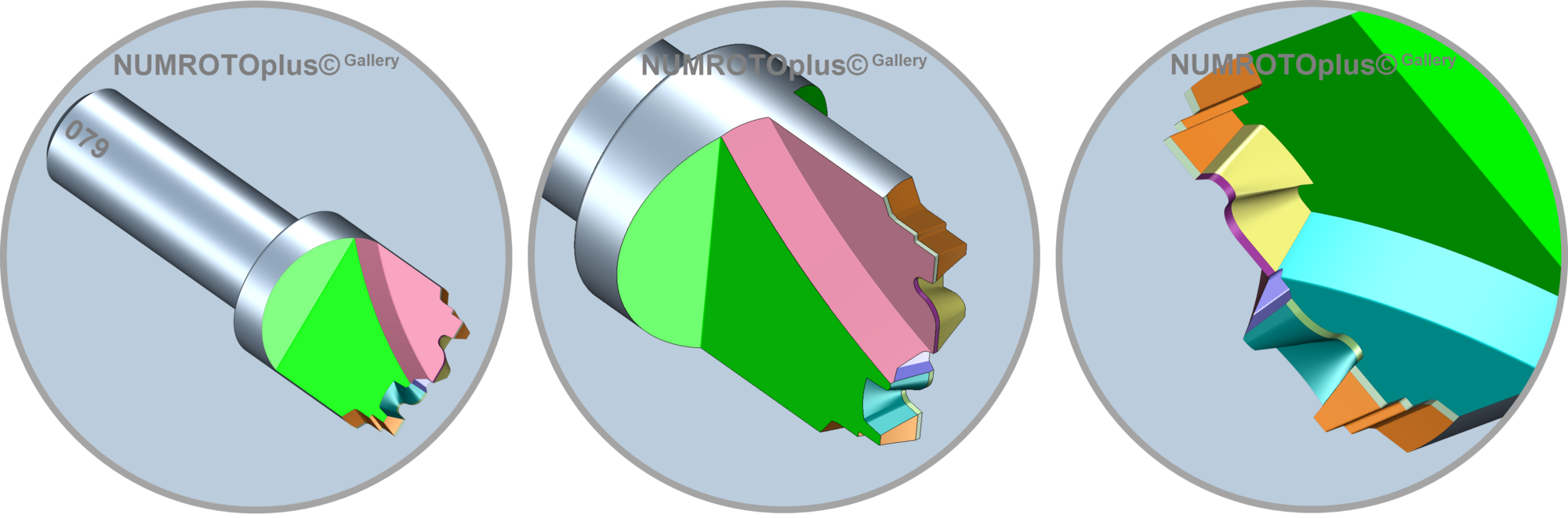

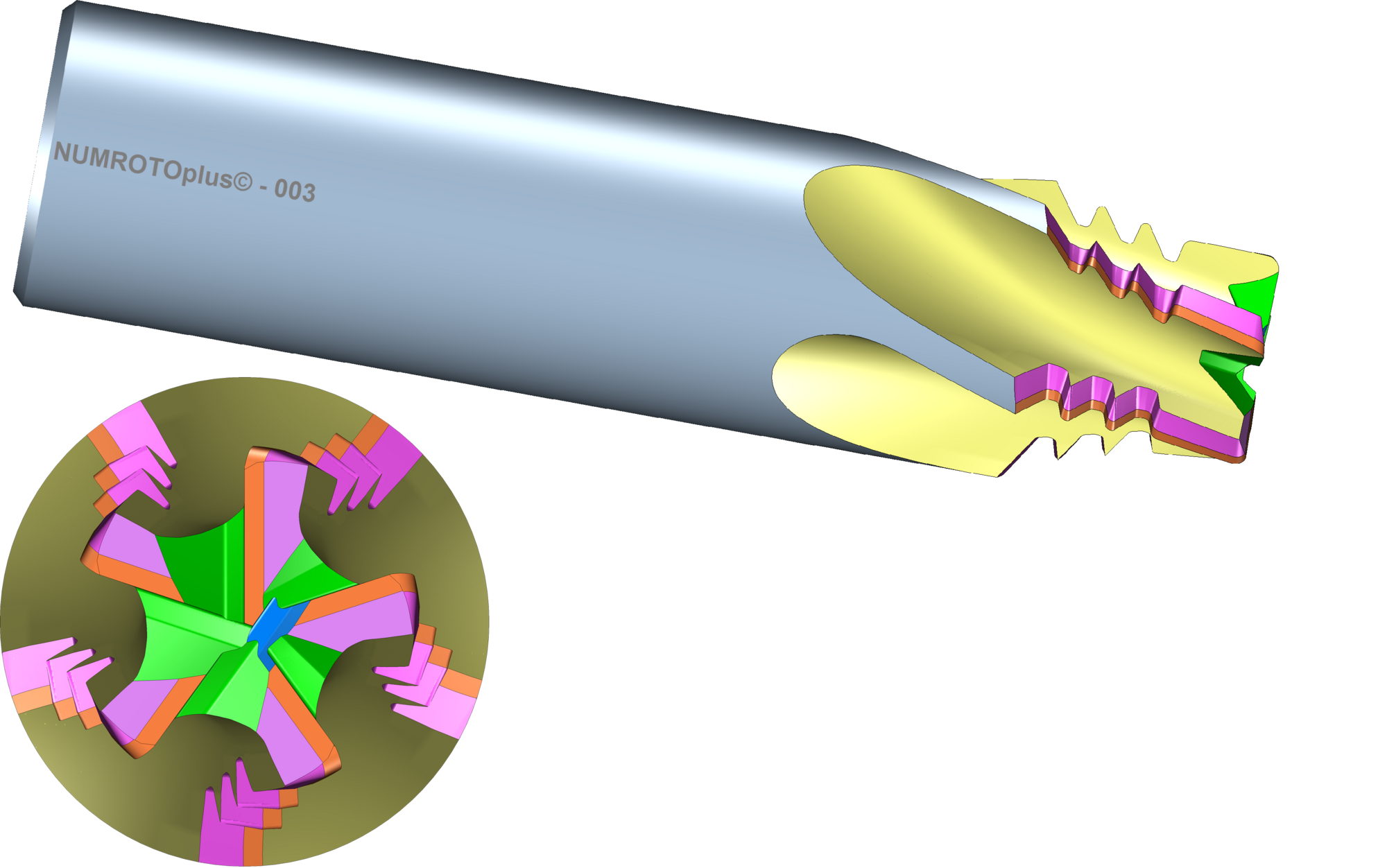

• CH-50052150 - Form cutters

    • Body form: form defined by a DXF file.
    • Face form: flat.
  • CH-50052450 - Extension for clamping system transformation

    • A transformation is useful when the center of the tool is not in the same plane as the tool axis. So, an insert can be clamped with a vice differing to the tool axis (headstock).
    • Feasibility limited depending on machine layout and clamping system.
    • Probing of tool location is not possible.
    • This option demands item no. CH-50052150 (Form cutters).

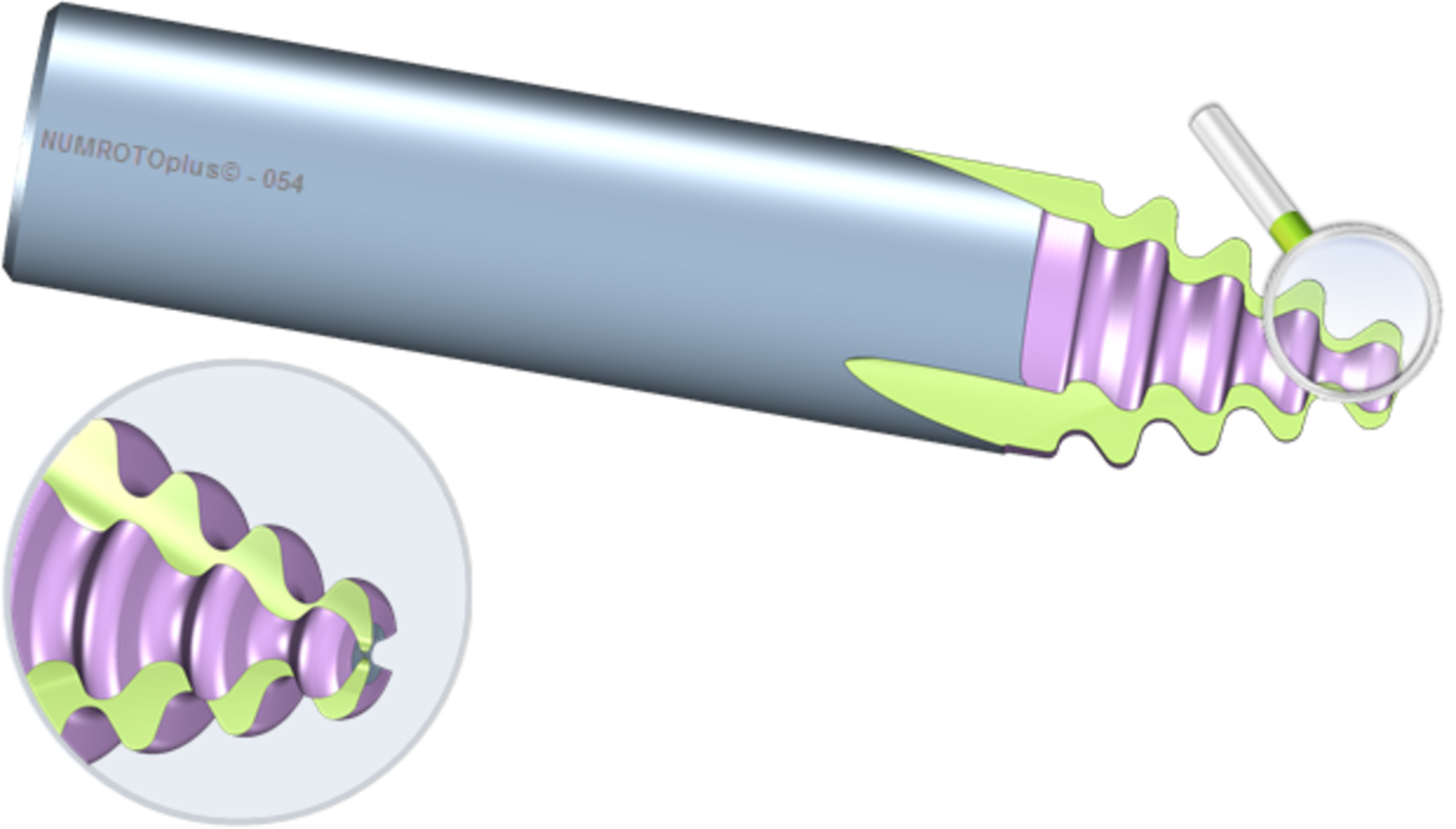

  • CH-50052680 - Extension for forming taps

    • Modulation of diameter according to NUMROTO calculations (customer specific adaptation possible).
    • This option demands item no. CH-50052150 (Form cutters).
  • CH-50052760 - 3-axis oscillation for form relief grinding with Axium-CNC

    • Allows multi-axis oscillation in the direction of the relief angle.
    • This option demands item N°. CH-50052150.
    • For this option a special program with dynamic operators in C has to be created once.
    • Also the CNC has to be capable of running programs with dynamic operators in C. It might be that the CNC option for dynamic operators in C has to be purchased.
  • CH-50052780 - 3-axis oscillation for form relief grinding with Flexium/Flexium+ CNC

    • Allows multi-axis oscillation in the direction of the relief angle.
    • This option demands item N° CH-50052150.
    • For this option a special program with dynamic operators in C has to be created once. On the Flexium CNC no additional CNC option is needed (compared to the Axium CNC).
